Corrective Maintenance
Outer Guard Rewind
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A

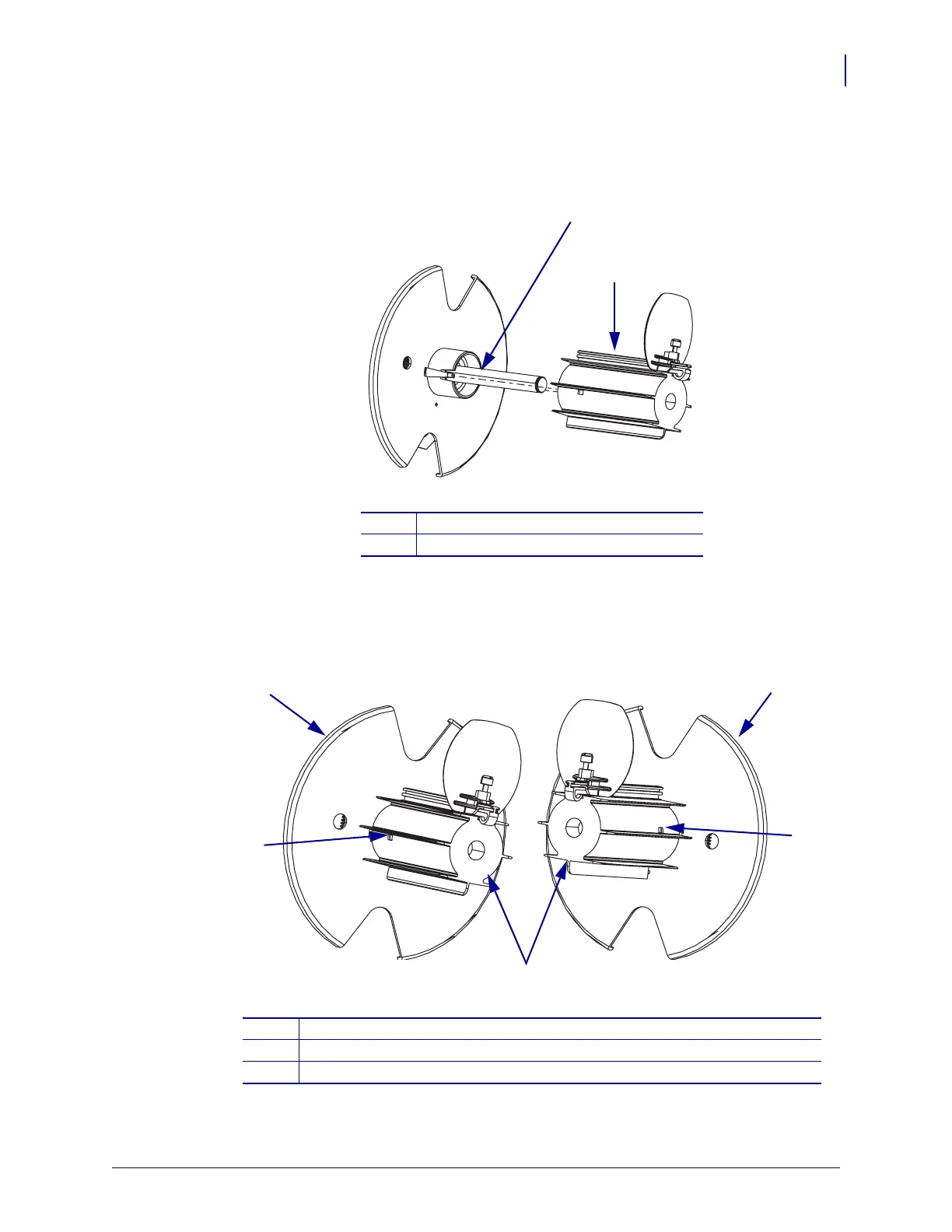

6. See Figure 217. Remove the spindle by sliding it off the rewind spindle shaft.
Figure 217 • Remove the Rewind Spindle
7. See Figure 218 and Figure 219. Remove the rewind back plate from the spindle by
pressing in on the two tabs shown on the left and right sides of the spindle.
Figure 218 • Remove the Rewind Back Plate
1
Rewind spindle shaft
2
Rewind spindle
1
Rewind back plate
2
Spindle
3
Tabs (2)
1
2
3
3
1
1
2

Zebra ZM400 Series Specifications

General

Max Print Width	4.09 inches (104 mm)
Max Print Speed	10 inches per second (254 mm per second)
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots/mm)
Connectivity	USB 2.0, Serial RS-232, Parallel, Internal Ethernet (10/100), optional wireless
Media Width	1"/25.4 mm to 4.5"/114 mm
Media Length	0.25 to 39 inches (6 to 991 mm)
Media Thickness	0.0023"/0.058 mm to 0.010"/0.25 mm
Ribbon Width	1"/25.4 mm to 4.33"/110 mm
Ribbon Length	1476 feet (450 m)
Supported Media Types	Continuous, die-cut, notch, black-mark
Operating Temperature	40°F to 105°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
