385
Corrective Maintenance
Pinch Roller
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
6. See Figure 244. Remove the old tear bar by removing the two mounting screw. Reinstall
the them into the mounting holes, to within 3.175 mm of the platen housing.

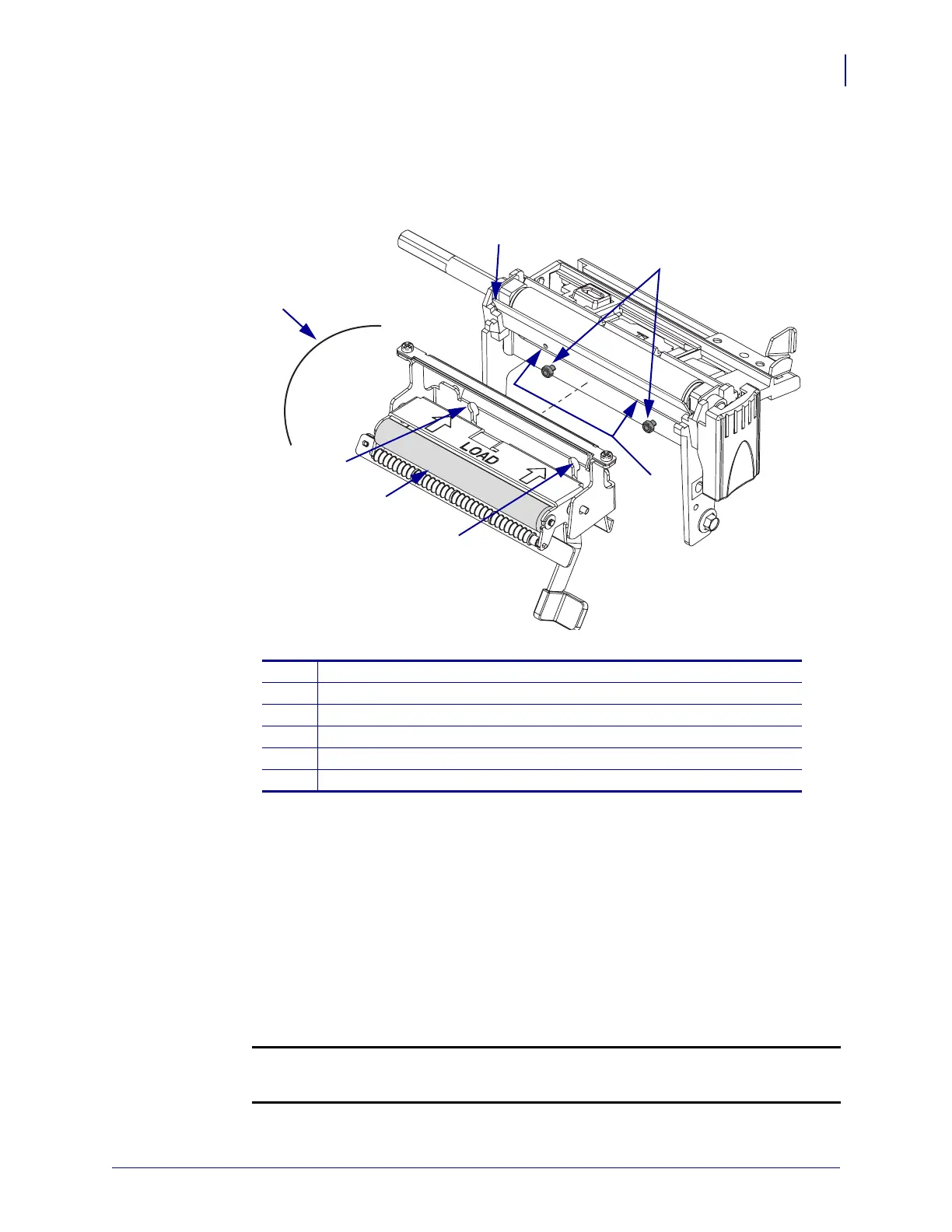

Figure 244 • Installing Peel Roller Assembly
7. Install the peel assembly with the pems to the rear and the opening in the mounting slot to
the top.
a. Insert the mounting slot opening over the two screws and lift up on the assembly.
b. Push the assembly back against the vertical surface of the platen housing then down,
so that the pems are resting on the horizontal surface of the platen housing.
8. Maintain a slight downward pressure on the peel assembly to keep the pems on the
horizontal surface, and tighten the mounting screws.
9. Raise the pinch roller assembly to the closed position. Ensure the pinch holder assembly
snaps into position and exerts force on the platen roller.
10.
1
Peel assembly
2
Tear bar
3
Mounting screw
4
Mounting holes
5
Pinch roller
6
Rest the pems on the housing here.
1
4
3
5
4
6
2
Caution •
When you are loading media or ribbon, remove all jewelry that could come
into contact with the printhead or other printer parts.
Reinstall the media and ribbon.
