4. See Figure 270. Align the mounting holes in the wireless board with the mounting
standoffs and install the three mounting screws.

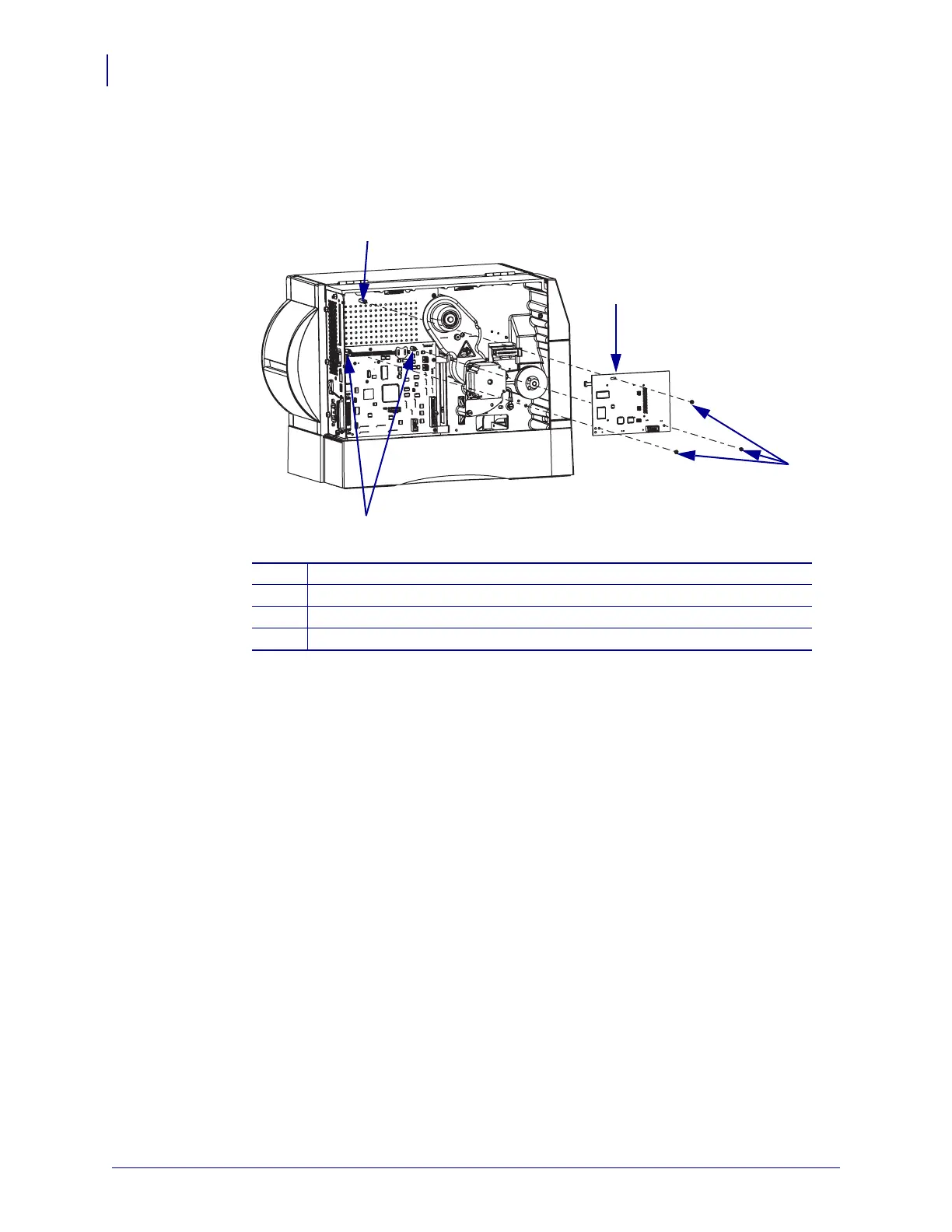

Figure 270 • Install the Wireless Board
5. See Figure 266 on page 408. Install your radio card.
1
Existing standoff
2
Wireless board
3
Mounting screws (3)
4
Installed standoffs
1
2
3
4
