13-8

Agilent 7500 ICP-MS ChemStation Operator’s Manual

Performing a Semiquantitative Analysis

Selecting Concentration Units for the Report

ChemStation will select a suitable concentration unit for each element being

reported, or you can choose the concentration unit for all elements being reported.

To select the concentration unit, complete the following steps:

1 Click on the arrow of the Conc. Unit box.

The Concentration Unit box appears.

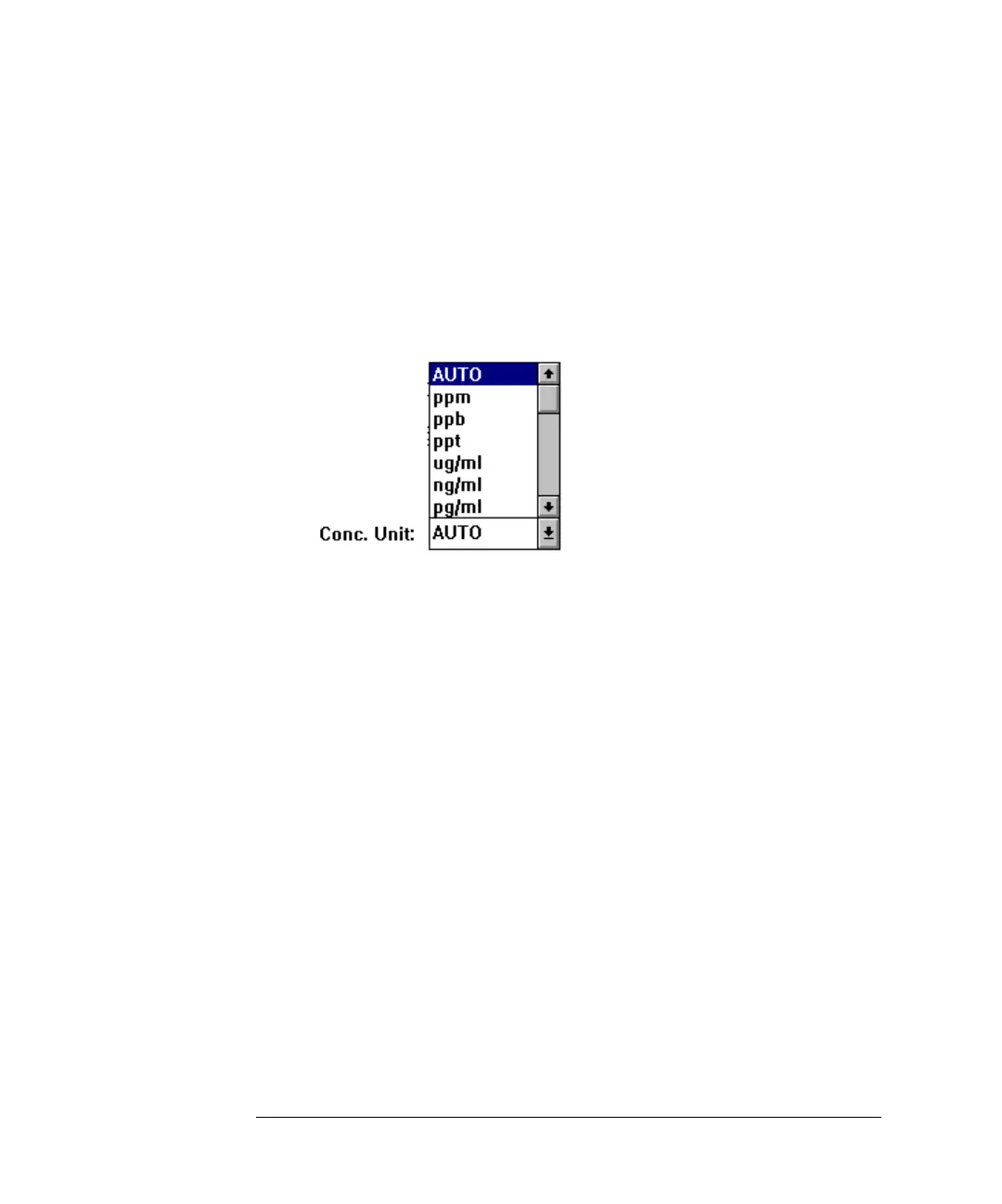

Concentration Unit Box

2 Select a unit.

The selected unit will be used for all elements when the report is generated. You can

also select AUTO, and then ChemStation will select a suitable unit, dependent on

the concentration value found.
