17-4

Agilent 7500 ICP-MS ChemStation Operator’s Manual

DataBase Editor

Editing the Database

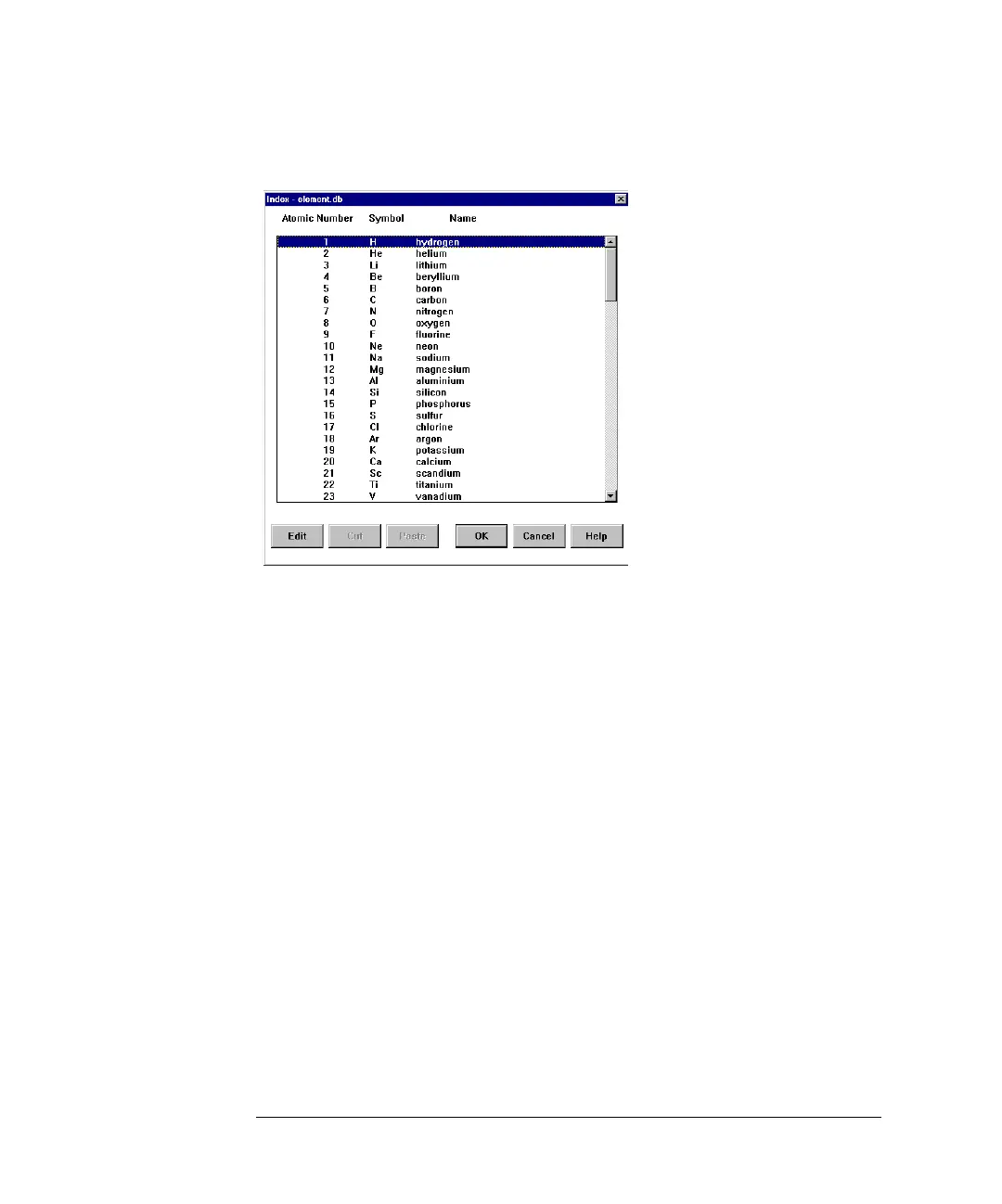

Index Dialog Box

• Edit

Pressing Edit after selecting an element or polyatomic molecule brings up the

Molecular Database Editor. The atomic numbers of items that have been edited,

cut, or pasted are preceded by an asterisk (*).

• Cut

Press this button to cut information on the selected element or polyatomic mole-

cule and temporarily store it in the internal buffer. When element.db is selected,

“Cut” is disabled to prevent accidental damage to the elemental database.

• Paste

Press this button to paste the information cut with Cut to the selected atomic

number. When element.db is selected, “Paste” is disabled.

• OK

Displays the Save Database dialog box.

• Cancel

Cancels editing the database.
