Agilent 7500 ICP-MS ChemStation Operator’s Manual
Viewing a Time Chart
Using the Display Count Box
Regardless of which display type you have selected, you can view the counts
recorded for each time on the Time Chart display by using a count box. This
ChemStation feature enables you to quickly view the intensity at any given time
slice. To display the Count Box, complete the following steps:
1 Click the horizontal Control Box Menu at the top left corner of the time chart
display window.
The window menu appears.
2Click Display Count Box at the bottom of the menu.
The count box appears, showing the time slice and the total counts. The letter
following the value indicates the detector mode used analog (A) or pulse (P).

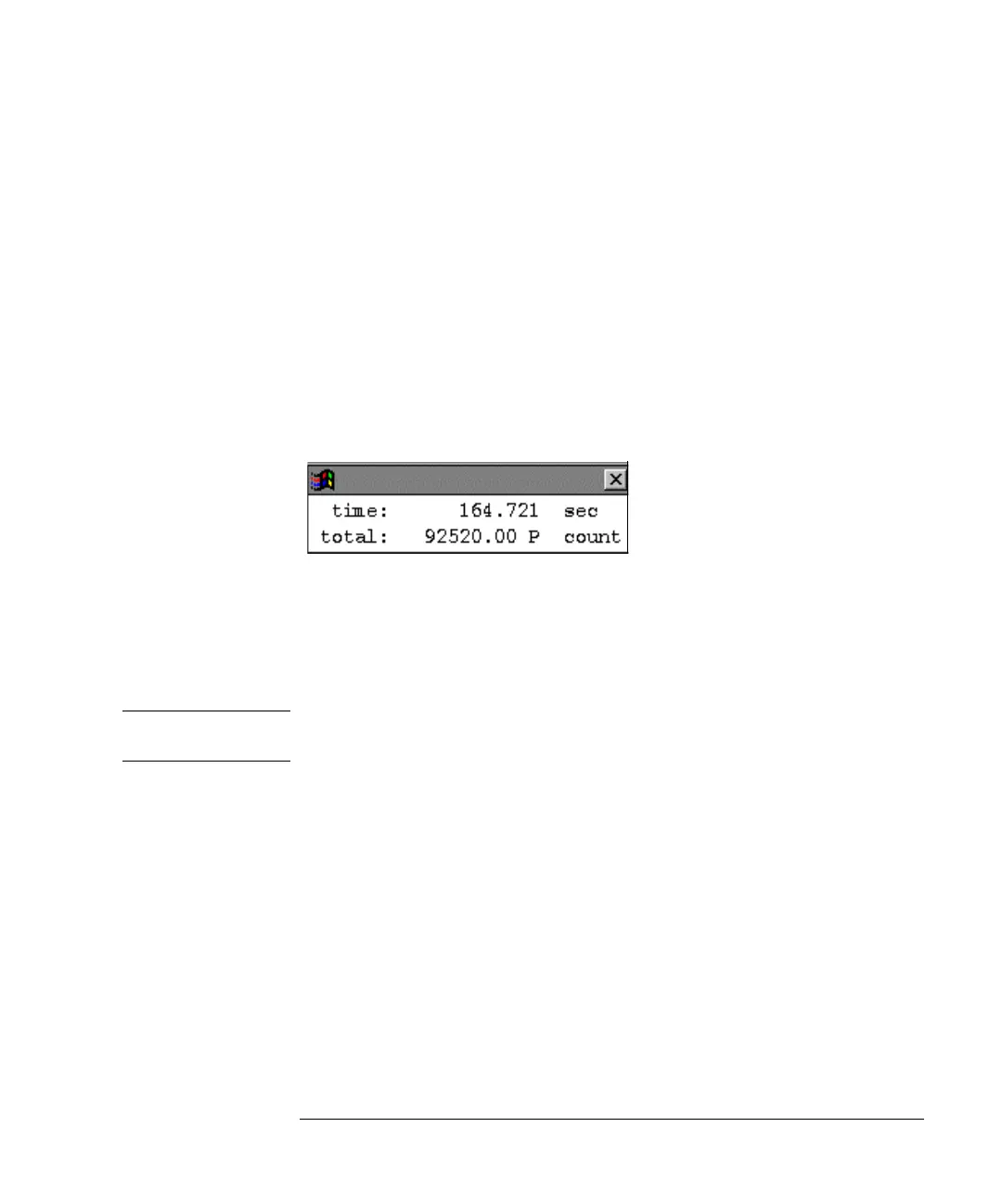

Count Box
3 To see counts for a time slice on the time chart, place the cursor at one point on
the Time Chart display and view the Count Box.
NOTE The Count Box displays until you close it by double-clicking the Control Box Menu
or by exiting the time chart display.
