19-30

Agilent 7500 ICP-MS ChemStation Operator’s Manual

Installing the Agilent 7500 ChemStation Software (Windows 2000)

NOTE If the ChemStaiton is already installed, this screen does not appear.

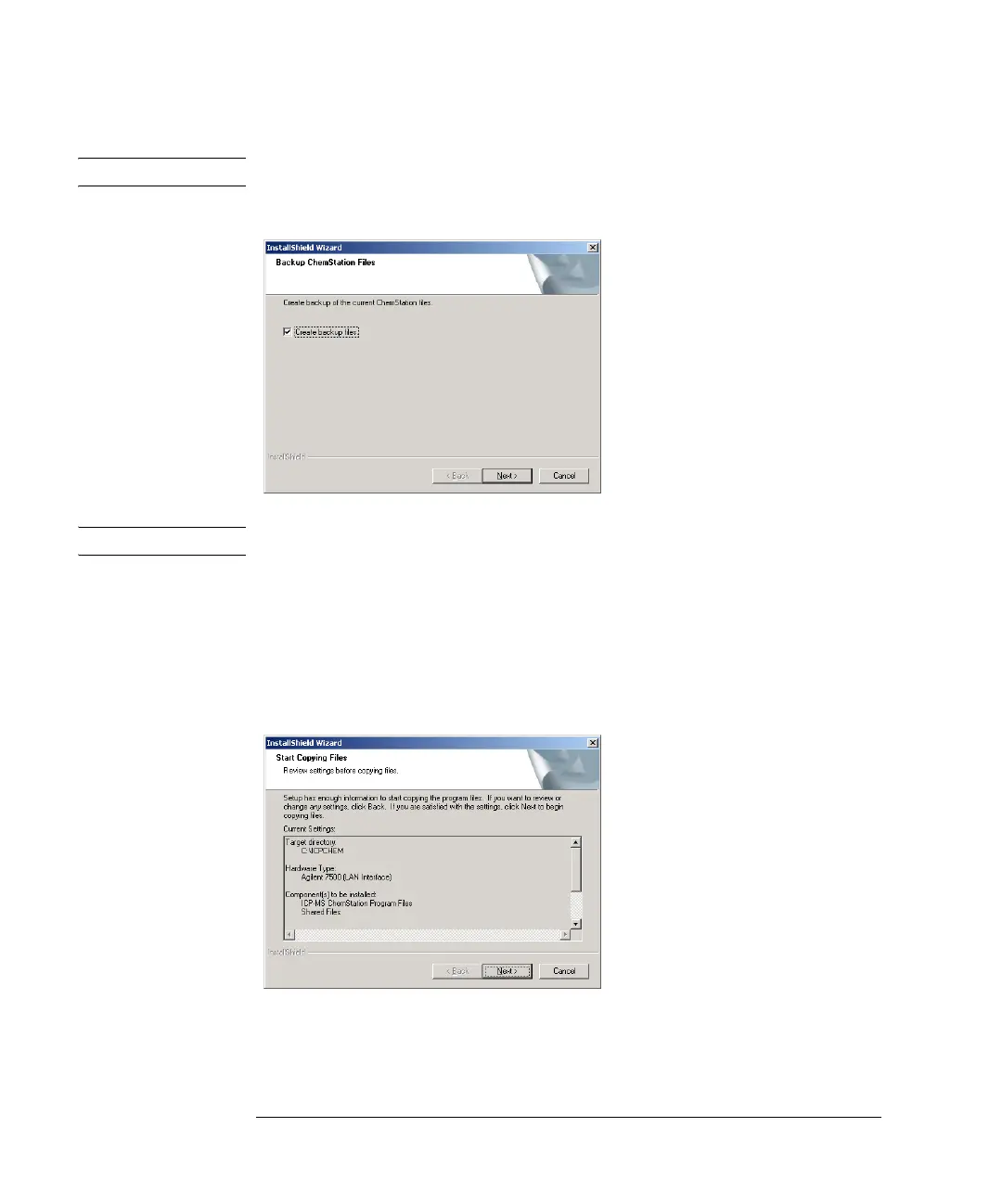

7 Backup ChemStation Files dialog box appears.

NOTE If the ChemStaiton is not installed yet, this screen does not appear.

Please make a backup of the existing ChemStation. To backup the existing

ChemStation, check Create backup files and click Next. (When Create backup files

is checked, specify the directory to be backed up in the next step.) If the PC hard

disk does not have enough free space, remove check from Create backup files and

click Next. In this case, files in the ICPCHEM folder will be deleted or overwritten.

8 Start Copying Files dialog box appears.

Click Next.

9 Follow the displayed message, install the ChemStation software and Help files.
