APPEAR AS Confidential 106/352
5.5 TS INSERTION
The TS insertion feature allows the upload and playout od pre-generated TS files onto any processing/output
module. It is only available on Switch modules with an IP Input port, ie Dual IP Input, Input+Output or Seamless IP
Input.
In order for TS insertion to be enabled, a valid ‘ts-insertion’ license must be present and a MicroSD card must be

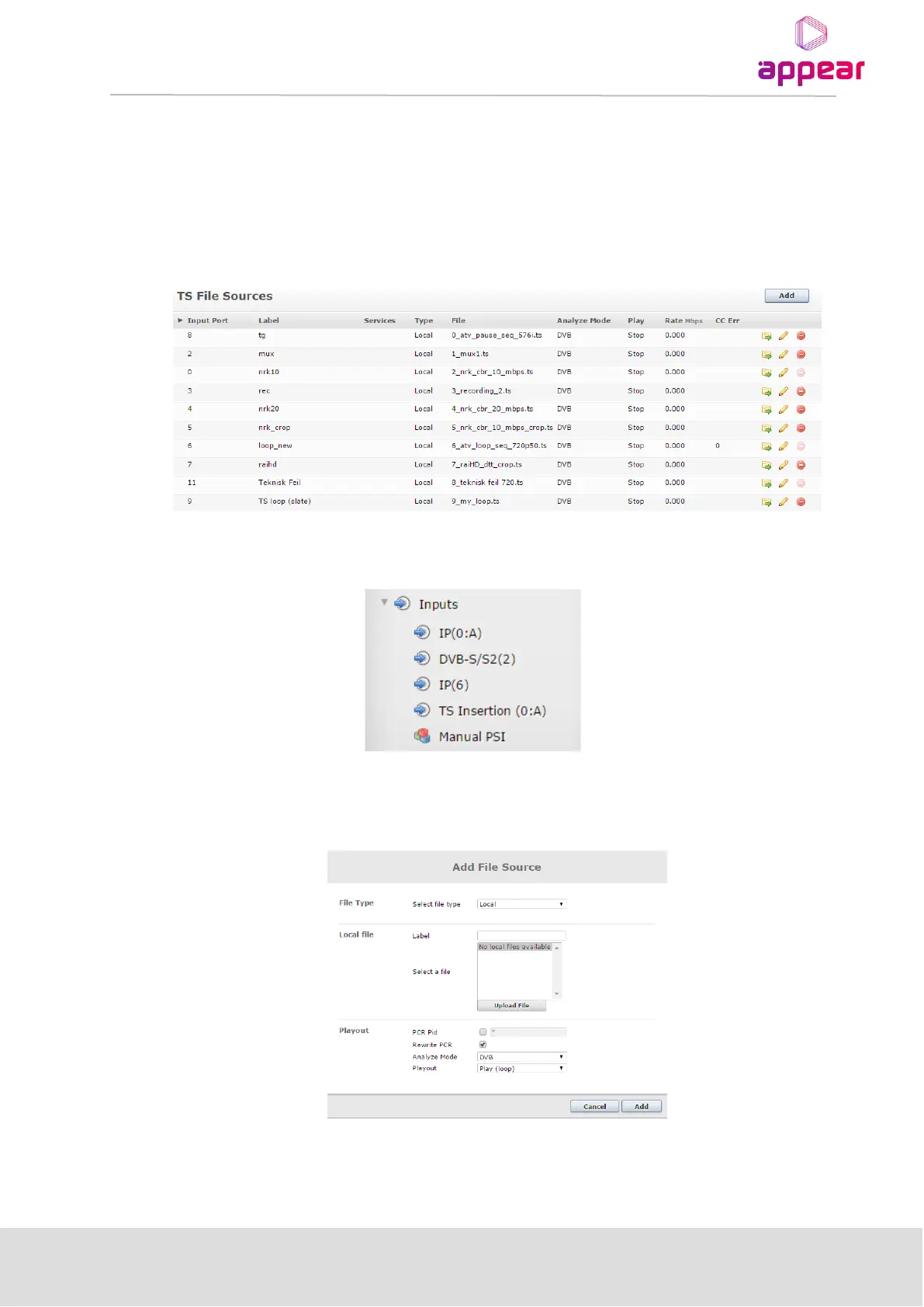

mounted on the MMI module. The TS Insertion user interface will be available under the Inputs tab:
5.5.1 ADDING A FILE
Pushing the Add button under the TS Insertion page will bring up the following dialog:
The Upload File button can be used to select a file and upload it to the MicroSD card. After the file has been
uploaded, it will appear in the "Local file" list, ready to be selected. For files larger than 50MB, FTP upload (see
below) is recommended:
