CW Carrier
Enables Continuous wave signal, disable modulation and only output a single
carrier at the configured frequency (for test only).
Inverted Spectrum
Enables Inverted Spectrum on Output signal.
Bitrate and Symbol rate cannot be modified as these two parameters are dependent on other modulation
parameters; hence they are calculated accordingly. In addition, the RF level is subject to change in future releases
– refer to the most recent data sheet for the correct value.

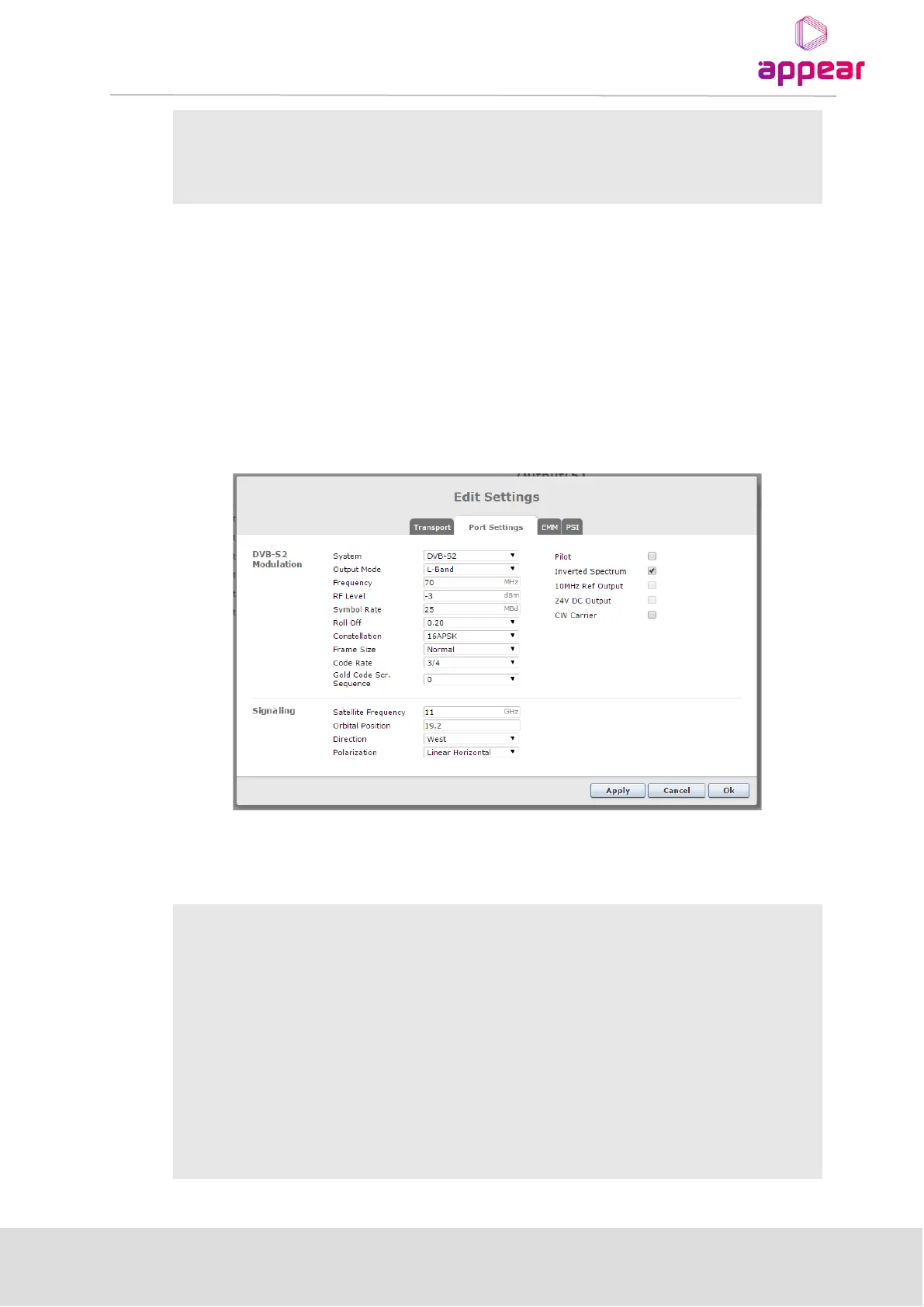

8.4.7 DVB-S/S2, DVB-S2X OUTPUT MODULES
The DVB-S/S2 and DVB-S/S2/S2Xoutput modules are available in two with two different (SM-100) or combined
(SM-300) output bands, IF and L-Band. Depending on the module there are different parameters available for
configuration.
The following parameters are available.
Modulation:
System
The following option can be selected from system
• DVB-S
• DVB-S2
Output
IF or L-Band (SM-300 only)
Frequency
Specify the DVB-S/S2 frequency in MHz.
For the IF output, valid range is 70 – 200Mhz. Default value is 70 MHz.
For the L-Band output, the valid range is 950 – 2150 MHz.
Constellation
Specify the Constellation as below
• DVB-S: QPSK only
