Appear TV DC100X - Service Parameters

APPEAR AS Confidential 241/352

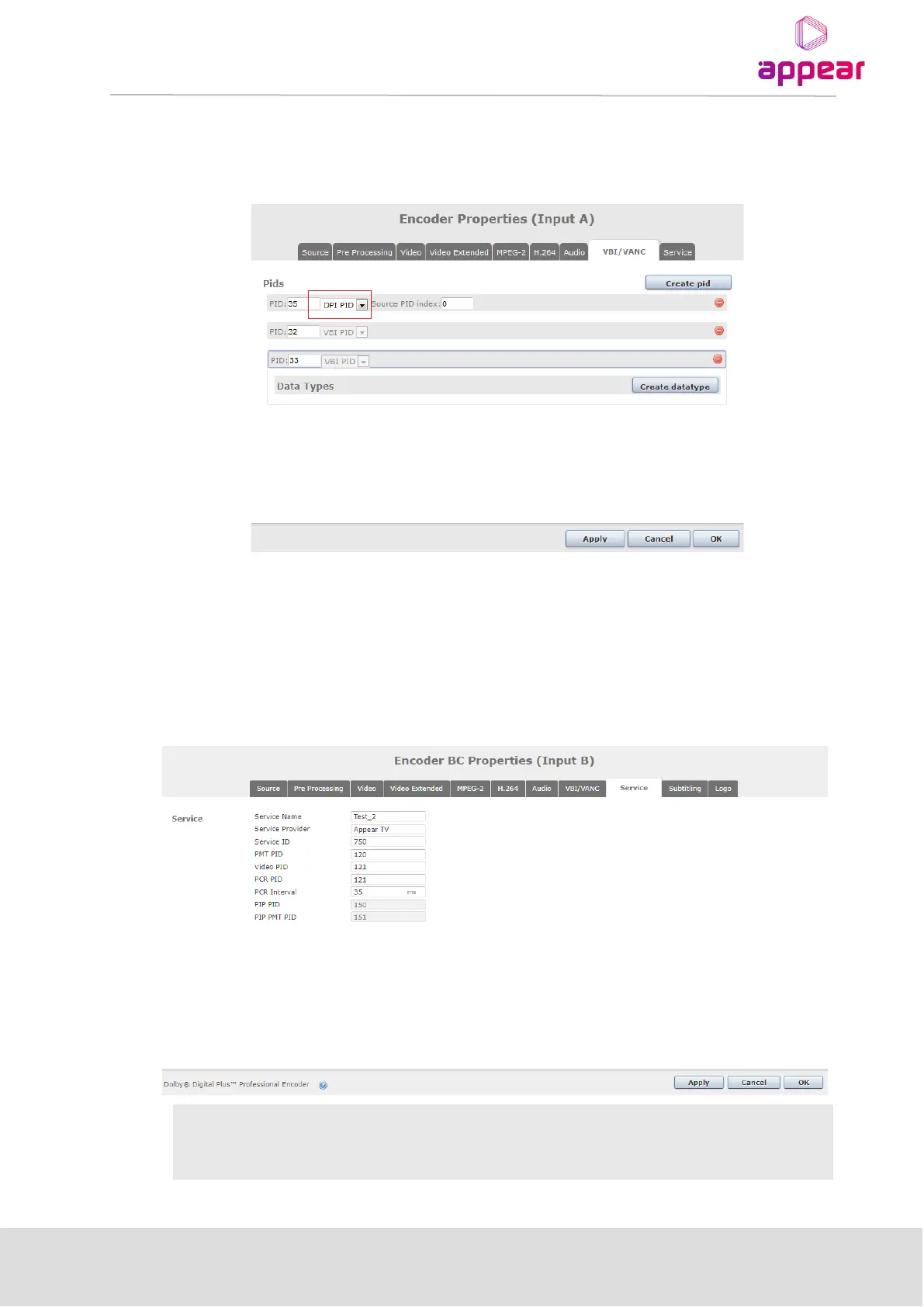

The user can enable or disable DPI, select the PID value and select the source PID index on the VBI/VANC page
in the GUI. The SCTE-104 supports data transmission of more than one source PID index. The list of incoming
indexes is shown on the status page. This PSI/SI for DPI is added to the output PMT.
The status found by clicking on the Port on the status and configuration page provides useful information when
configuring the VBI/VANC. Teletext, subtitling pages, WSS and VPS status is given for VBI, SMPTE-2031 and OP-
47.
9.2.8 SERVICE PARAMETERS
The following default parameters are available for service configuration. The Components tab of the output card
can also be used configure different PID values and components on each output port.
Service Name
Service Name for the encoded stream.
Service Provider
Name of the Service Provider for the encoded stream.
