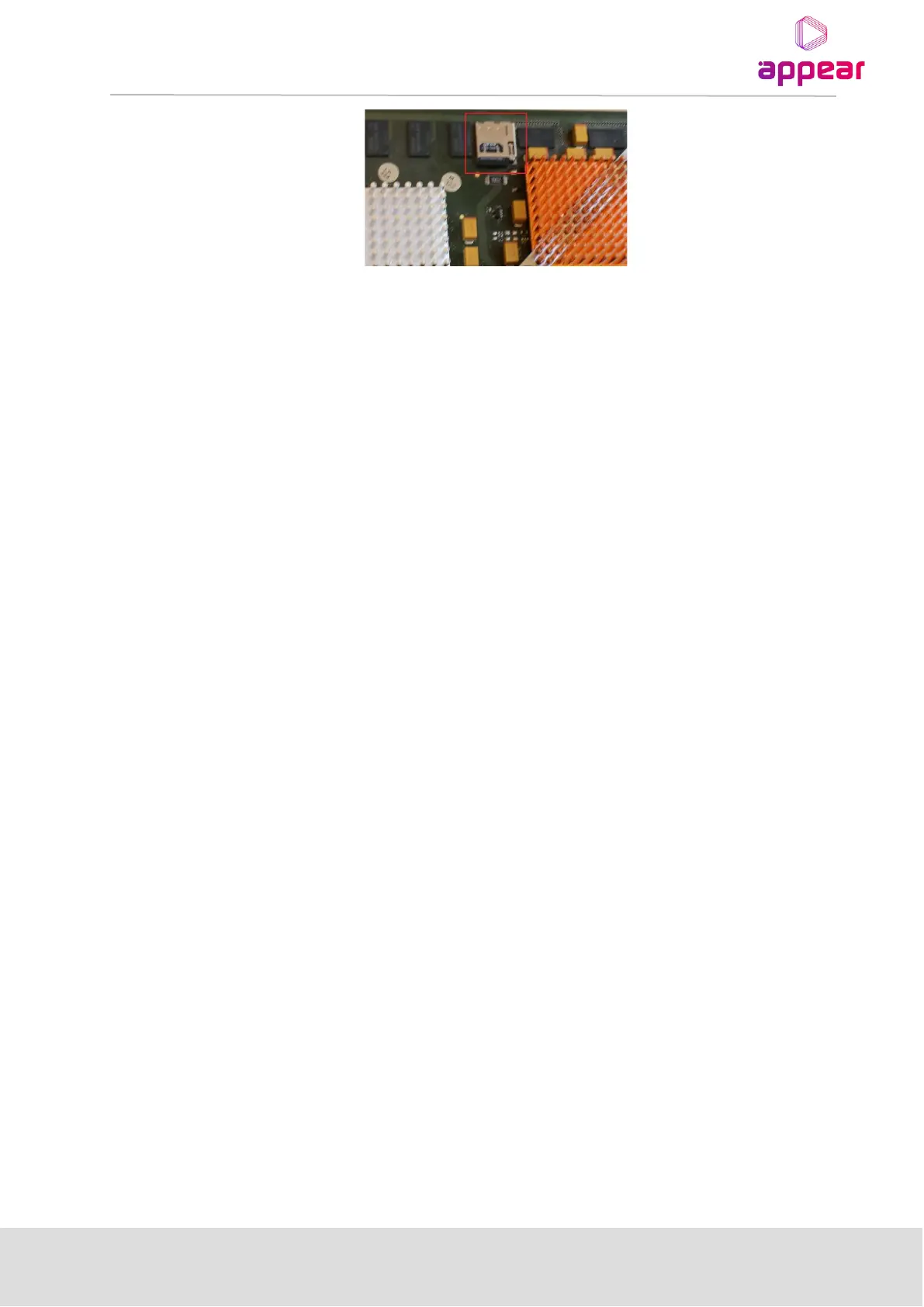

In order to remove the MicroSD card, this can be pushed and then removed.
The MicroSD card must be pre-formatted with a FAT32 file system.
3.3 CONNECTING INPUT SIGNALS
Please refer to product datasheets for module identification.
3.3.1 IP INPUT
This applies to the following modules:
• Standalone IP Input
• Dual IP module (Input mode)
The standalone IP input module is equipped with two electrical connectors (RJ45) and one SFP connector. One
RJ45 electrical connector and the SFP connector are for data. The second RJ45 electrical connector marked
“control” is not in use. It is not required to configure the IP address or connect the port to the IP network.
The Dual IP module is equipped with two electrical connectors (RJ45) and two SFP connector.
Automatic sensing of 100/1000Mbit Ethernet connections is supported. For a 1000Mbit connection, the Ethernet
cable must be a category 6 cable.
The IP address for both the electrical (RJ45) and the optical (SFP) connectors for data is the same. Consequently,
both connectors cannot be used simultaneously. These inputs are automatically activated by IP connection. The
first port activated (by establishing a link to the router) will be the active port. To activate the other port, remove
the cable from the active port.
3.3.2 ASI INPUT
Each ASI input module has three independent ASI inputs. The ASI connector is a 75Ω BNC connector. The
maximum input rate per connector is 212Mbit/s in burst mode.
The ASI module is equipped with an electrical connector (RJ45) marked “control” that is not in use. It is not
required to configure the IP address or connect the port to the IP network.
3.3.3 DVB-S/S2 INPUT
The DVBS-S/S2 supports both DVB-S (QPSK) and DVB-S2 (with DVB-S2 license). Each DVB-S/S2 input module
has 4 independent L-Band inputs. Each input is a 75Ω F that can be connected either directly to an LNB, an L-
Band distribution amplifier, or switch. The maximum input level is -25dBm. The recommended input level is
between -30dBm and -40dBm.
One ASI output port is available for monitoring. Any of the four L-Band inputs can be copied to the ASI output
without affecting the services in use. The ASI connector is a 75Ω BNC connector.
