10.2.4 DATA OUTPUT

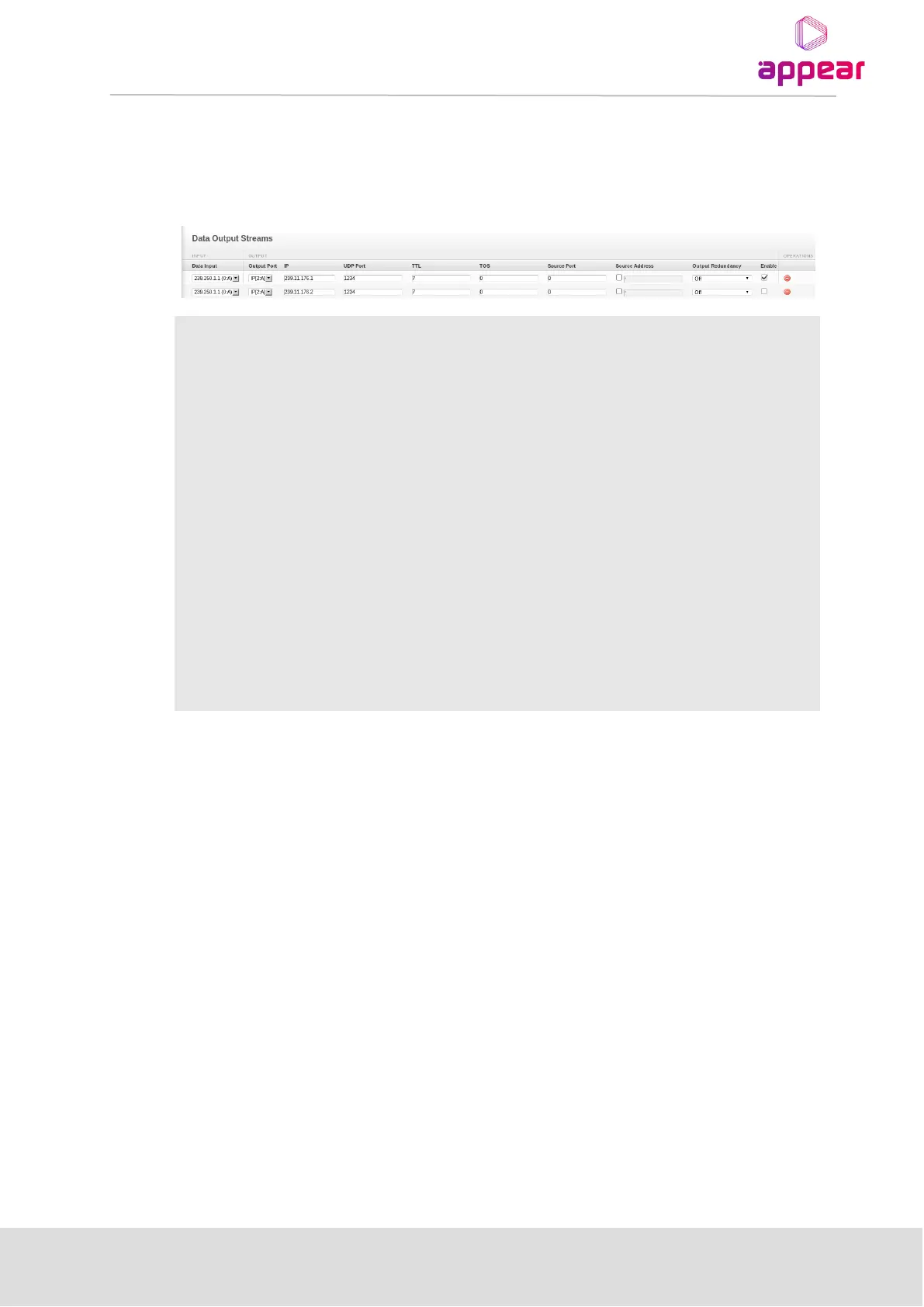

The Data Output is used for mapping a non-MPEG TS (ie DAB) stream from an input port to an output port. The
pane is where the parameters of the outgoing, transparently mapped data streams are configured together with
the redundancy mode
Output Port
The physical IP port (module) where the EDI/data stream will leave the
unit. All supported IP ports are shown in the dropdown list
IP
The destination IP address of the unicast or multicast carrying the EDI
stream.
UDP port
The destination UDP port of the unicast or multicast carrying the EDI
stream.
TTL
Set the IP header Time to Live value
TOS
Set the IP header Type of Service value
Source Port
Override UDP header source port
Source Address
Override IP header source address
Output Redundancy
Activate or deactivate output redundancy
Enable
Enable the stream on the output module
