The following options are available for the port settings:
Frequency
47 → 862MHz
Constellation
Select from pull-down options
• QPSK
• QAM16
• QAM64
RF Level
-10 → +2.2dBm
Bandwidth
6, 7, or 8MHz
Inner Code
1/2, 2/3, 3/4, 5/6, or 7/8
Tx Mode
8K
Guard Interval
1/32, 1/16, 1/8, or ¼
CW Carrier
Enables Continuous wave signal, disable modulation and only output a single
carrier at the configured frequency (for test only).
Inverted Spectrum
Enables Inverted Spectrum on Output signal.
8.4.10 SRT IP OUTPUT MODULE

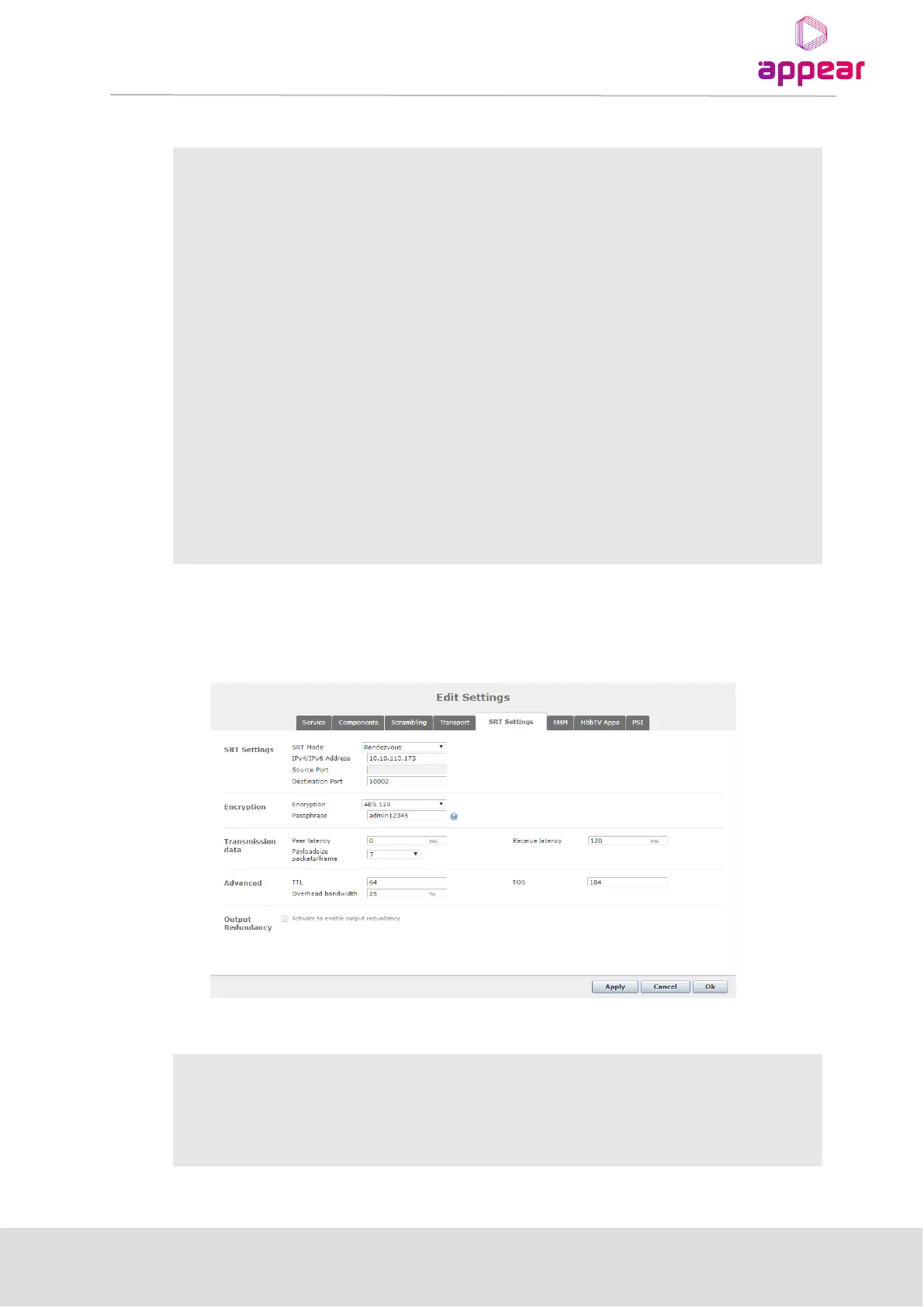

For SRT output module, the SRT settings tab is shown below:
SRT Settings:
SRT Mode
Select SRT mode: Caller, Listener or Rendezvous
IP Address
Specify the IP address
Source Port
This will be the port from which SRT will send video data
