8.5.2 VIRTUAL MPTS OUTPUT
This feature provides the capability to generate the NIT including Delivery System Descriptor for MPTS outputs
currently not configured by the unit. The Delivery System Descriptor is defined as part of the MPTS setup; data
inserted will be included in the NIT.
For the ASI, COFDM, or QAM output, the virtual output provides this feature. It may be added from the Outputs
page using the Add Virtual button enabling the signaling of other transports not present in the same unit.

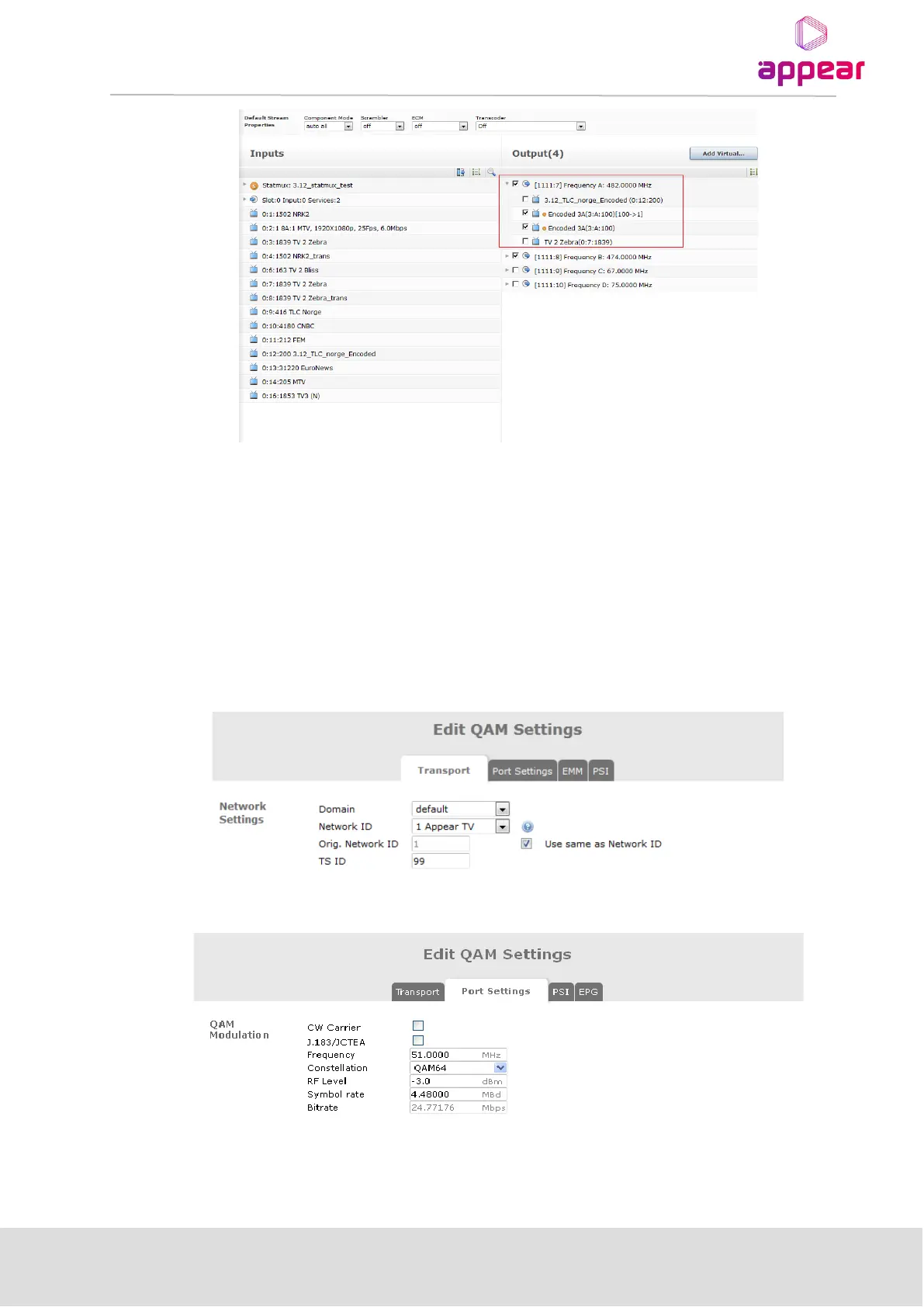

Clicking the Add Virtual button displays a dialog similar to the one shown below, allowing you to insert the
Network ID, TS ID in the Transport tab, followed by the QAM configuration (for this example) in the Port
Settings tab.
