APPEAR AS Confidential 203/352
More information regarding the configuration of the T2 output module can be found in the Terrestrial Solution
Configuration Guide
8.4.9 ISDB-T OUTPUT MODULE
The ISDB-T modules Port Settings tab is not modifiable as the parameter values are set under Outputs → ISDB-
T → Device setup.
Although the ISDB-T output has two physical outputs, it carries up to eight transport streams. The RF connectors
on the output are configured as such: the first two block modulators A and B, output on the port marked as A+B,
the last two block modulators C and D output on the port marked as C+D.

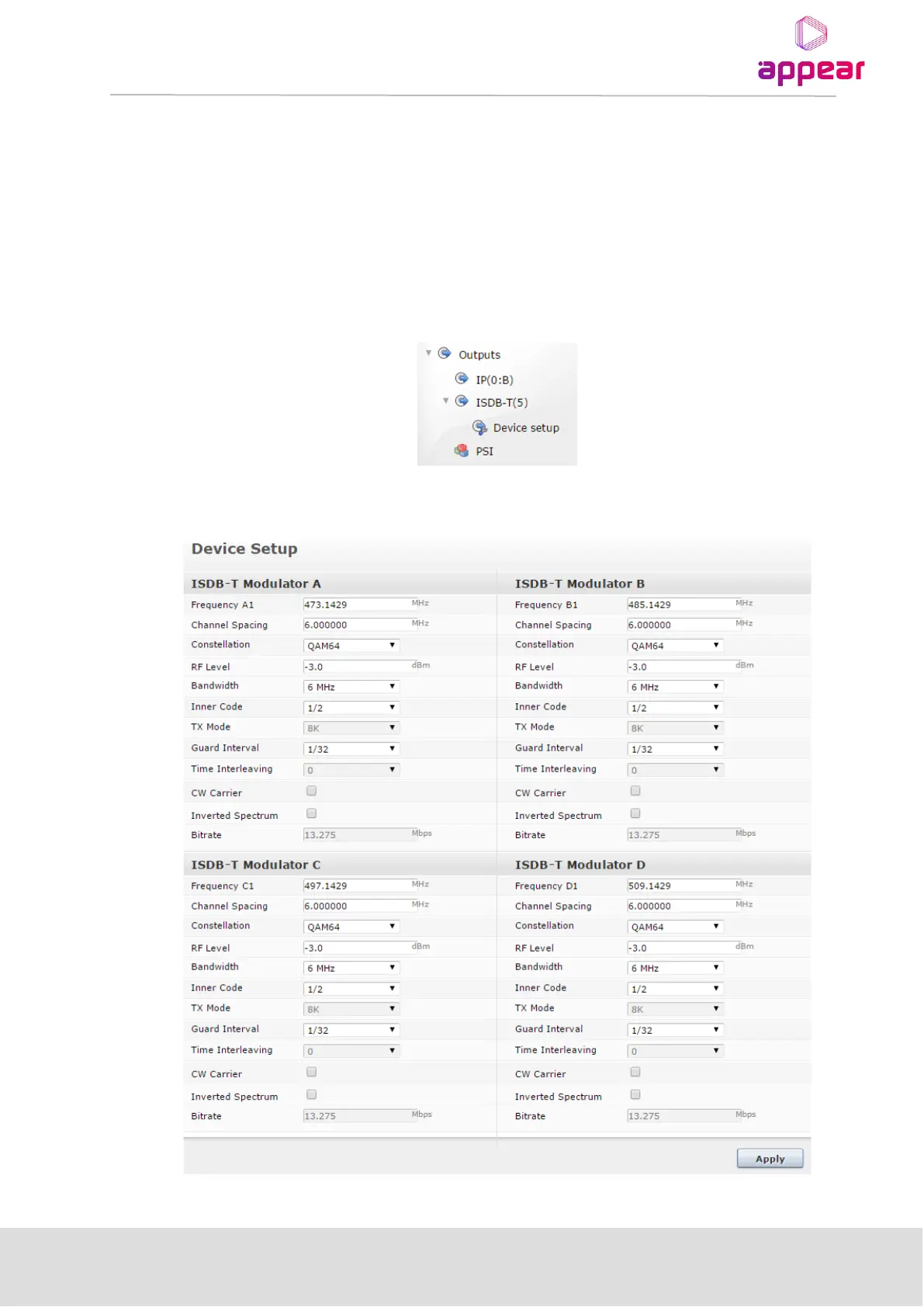

When Device Setup is selected, both modulators can be configured from the resulting dialog:
