Appear TV DC100X - Logo Insertion; Transcoder Modules

APPEAR AS Confidential 244/352
PID
Outgoing PID number for the converted subtitling component
Use Colors
If Enabled and the Teletext/EBU subtitling source contained color formatting, this
formatting will be applied accordingly in DVB subtitles during conversion

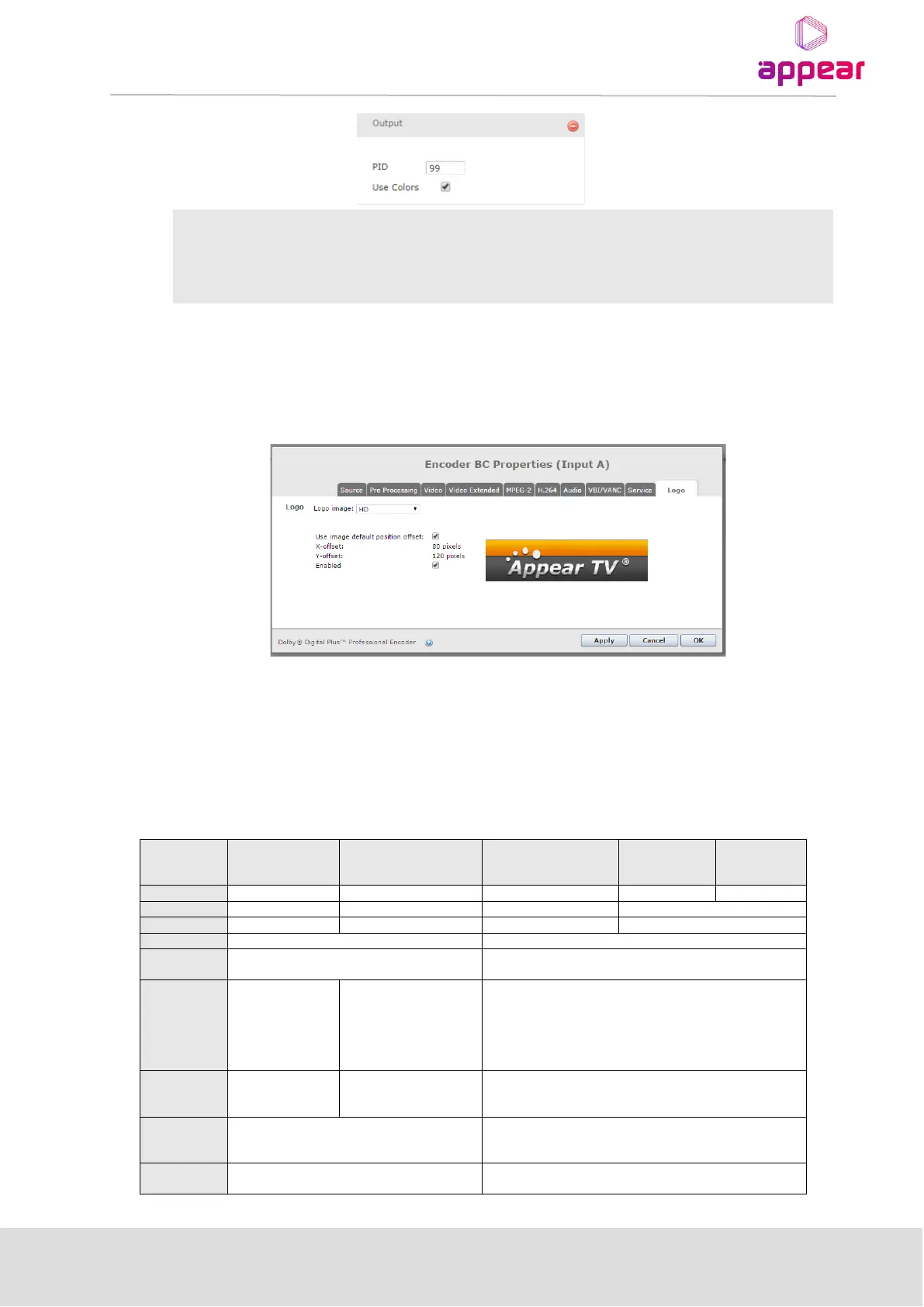

9.2.10 LOGO INSERTION
Once there is a valid logo on the MMI, then it is possible to assign this to a transcoder channel. This is configured
on the Logo tab:
Once the correct logo resolution is chosen for the service and the offset set, the logo can then be enabled.
If this logo is to be used for insertion on a signal loss, then the logo will need to be configured, but not enabled.
9.3 TRANSCODER MODULES
The following is an overview of the available Encoder modules and functionality available:
Transcoder-
SD
Transcoder –HD
Universal
High VQ
Transcoder
Universal
Dense
Transcoder
Universal
Dense
Transcoder
Product
TC-100
TC-100
TC-400
TC-200
TC-400
Max-SD
4 SD
2 SD
2 SD
16 SD
Max-HD
N/A
2 HD
1 HD
4 HD
Statmux
Yes
No
Universal
Statmux
No
Yes
Video
Input
480i:
30Hz/29.97Hz
576i:
25Hz
1080i:
30Hz/29.97Hz/25Hz
720p:
60Hz, 59.94Hz
/50Hz
1080i: 29.97Hz /25Hz
720p: 59.94Hz /50Hz
480i: 29.97Hz
576i: 25Hz
Video
Profile
High
Main
High
Main
Baseline
High
Main
Rate
Control
Mode
Constant Bit Rate (CBR)
Capped VBR (CVBR) with QP target
Constant Bit Rate (CBR)
Capped VBR (CVBR) with QP target
GOP
Control
Fixed or Dynamic
Dynamic
