Appear TV DC100X - Hardware View; Active Alarms

APPEAR AS Confidential 335/352
In this list, it is possible to sort the options by dragging the line to the desired location. The optional information
available is described below:
EMM
EMM defined on the output port
Max Bit Rate
Maximum bitrate of the output port
Min Bit Rate
Minimum bitrate of the output port
Dropped
Counter for packets dropped by the interface in overflow situations

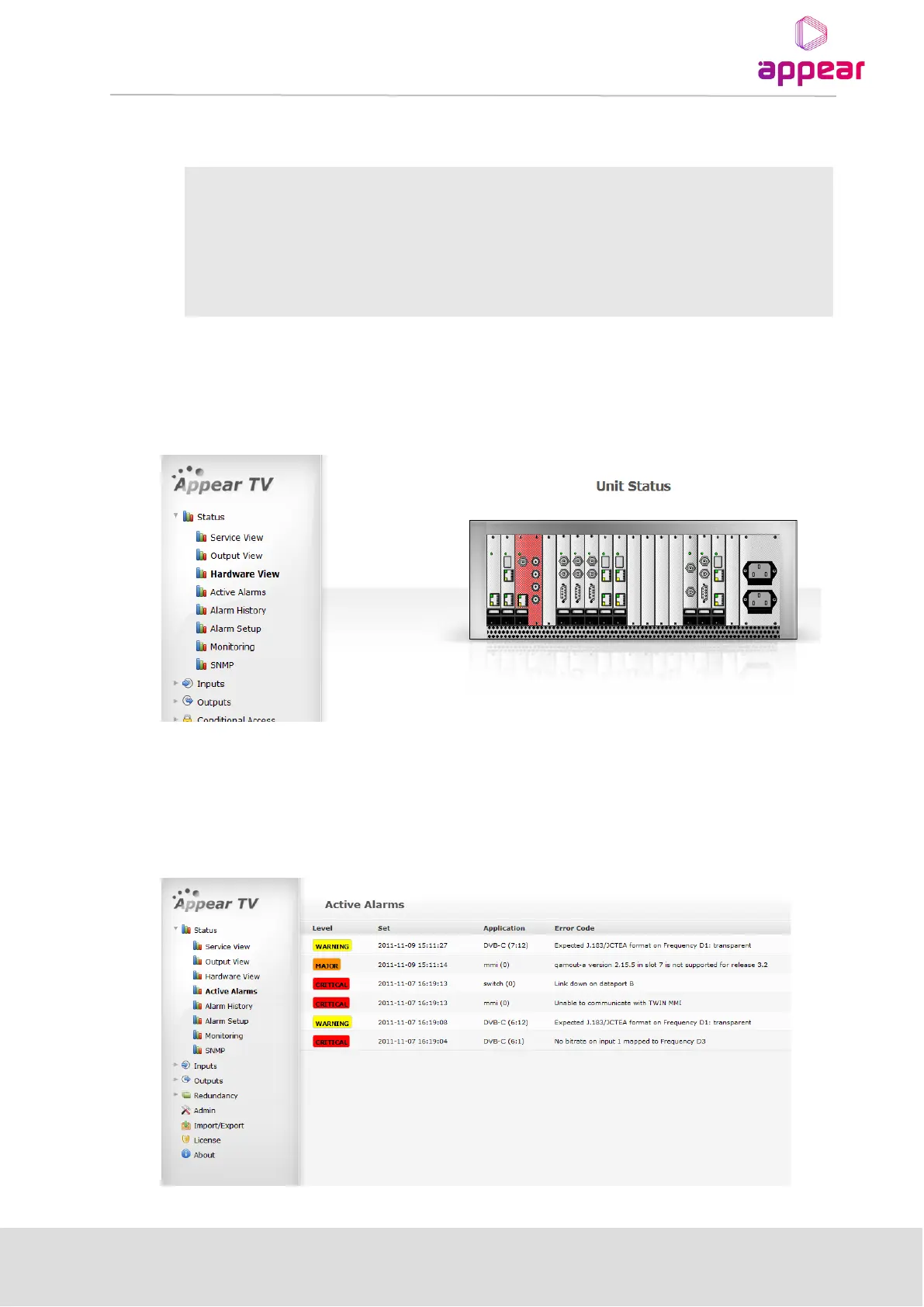

13.1.3 HARDWARE VIEW
The hardware view shows the unit’s status graphically. In the figure below there is one module with critical alarm
status, shown in red. A description of the alarm status is shown in the status pane at the bottom of the screen.
13.1.4 ACTIVE ALARMS
Expand the Status view in the Navigation Pane and click the Active Alarms icon. All active alarms will be
displayed as shown below. The active alarms are first filtered by the active alarms filter, then by the root cause
filter, if enabled. Note that all active alarms will also be displayed in the bottom pane. Refer to the table below for
information on the color coding and what it represents.
