APPEAR AS Confidential 97/352

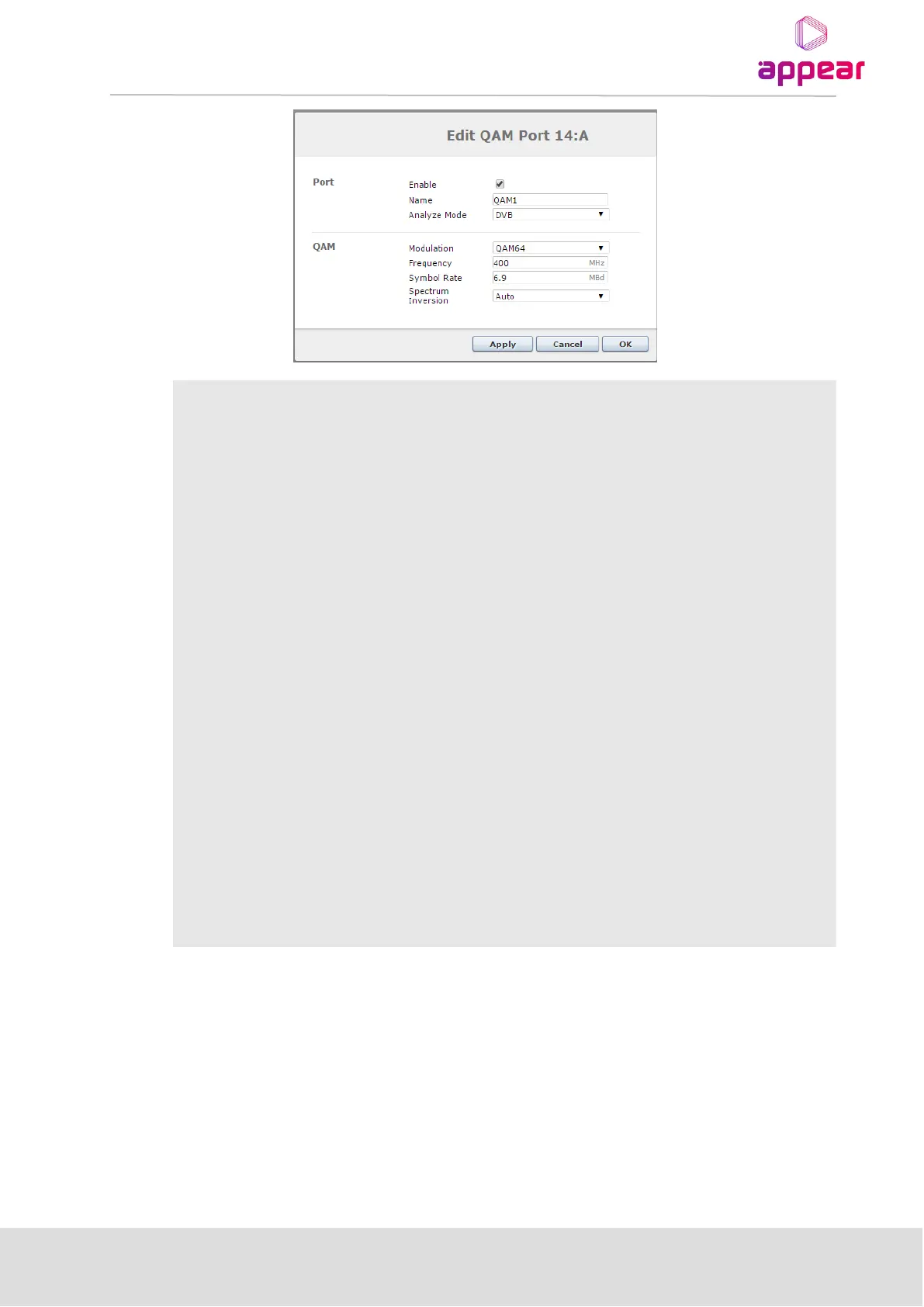

Enable
Enable the corresponding input port
Name
This parameter allows for each port in a module to be labeled. This label is visible as a
tooltip when the mouse cursor hovers over the port. Port names are shown in the alarms
when a non-empty string is set as the name.
Mode
Select one of the following modes:
o DVB
o DVB (SDT)
o MPEG
o ATSC
o OFF
The default mode is DVB. If the incoming transport stream is not DVB compliant, use
MPEG mode instead.
Modulation
Specify the type of modulation, select from one of the following:
o QAM16
o QAM32
o QAM64
o QAM128
o QAM256
Frequency
Specify the QAM frequency in MHz, valid range is 170k – 887Mhz
Symbol Rate
Specify the Symbol Rate in MBd, valid range is 0.452 – 7.23 MBd
Spectrum
Inversion
Specify the Spectral Inversion, choose from Auto, Normal, or Inverted
When clicking on an input port, the status parameters for this port are available in the right hand status bar.
Depending on the version of the module, various parameters are displayed.
