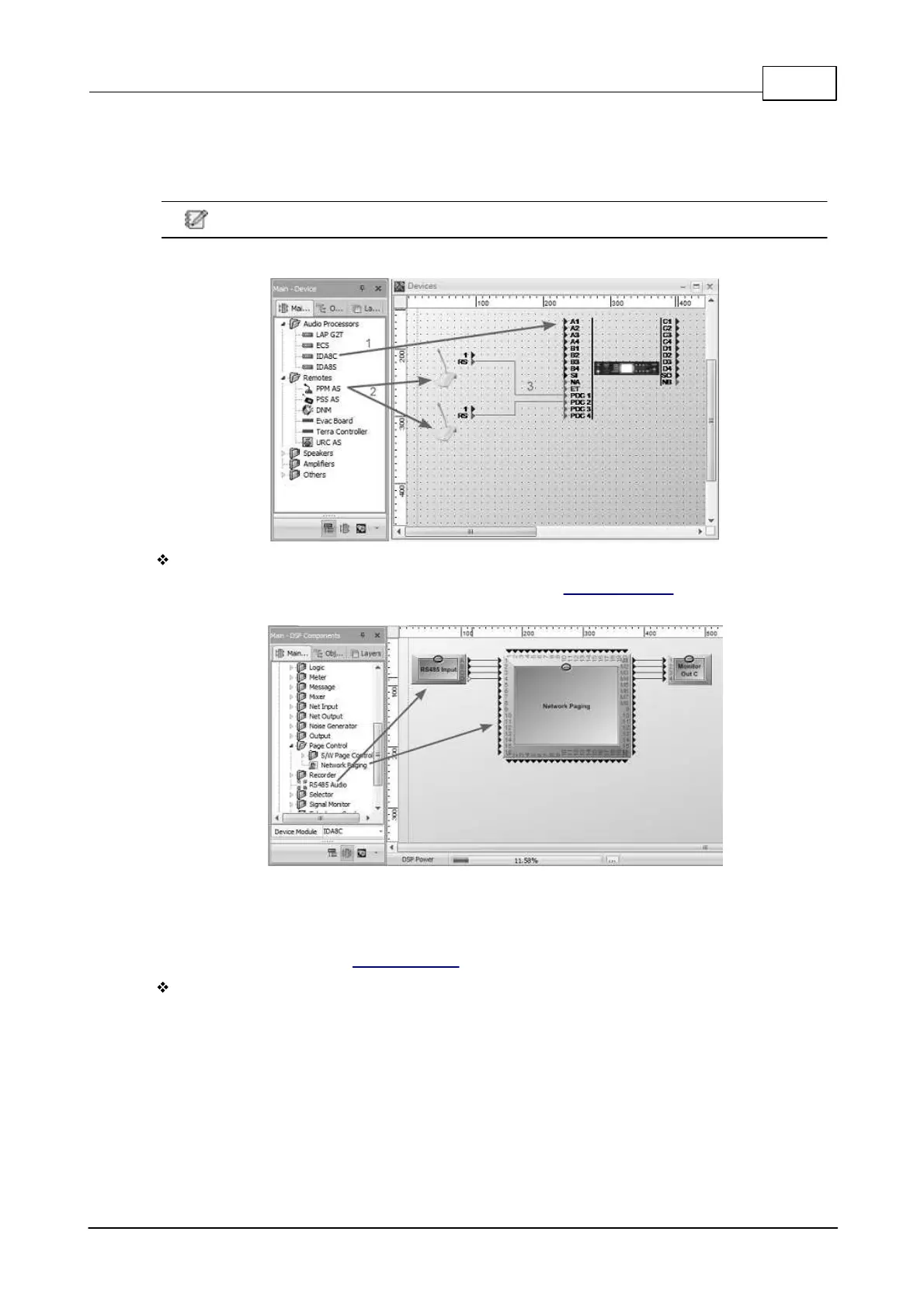

1. Open or create a Ateis studio configuration file.
2. Drag IDA8C object to design window to create an audio processor object.
3. Drag PPM AS to design window to create PSC object
"PPM AS, PCP, PSC and CDPM share the same object.
4. Wiring to connect green pins between PSC object and audio processor.
DSP component configuration
The audio of PSC needs to be routed from using the Network Paging component for paging
processing. See the following example.
Pin A~D of RS485 Input component is corresponds to PSC 1~4 audio plugged in PDC1~4
respectively. [Network Paging] component process paging request coming from various sources,
and to determine which source is allowed to paging to zones it desired. The zones are M1~M8
on Network Paging component. You need create an integration paging event to link with PSC,
see DSP Components > Network Paging to know the paging settings.
PPM AS Manager
PPM AS Manager is an unit of the software to manage settings about paging console that
connect to audio processors like IDA8 series.
Click main menu [View > PPM AS Manager] to open PPM AS Manager:
