Ateis IDA8S User Manual

DSP Components 409
© 2020, ATEÏS. All rights reserved.

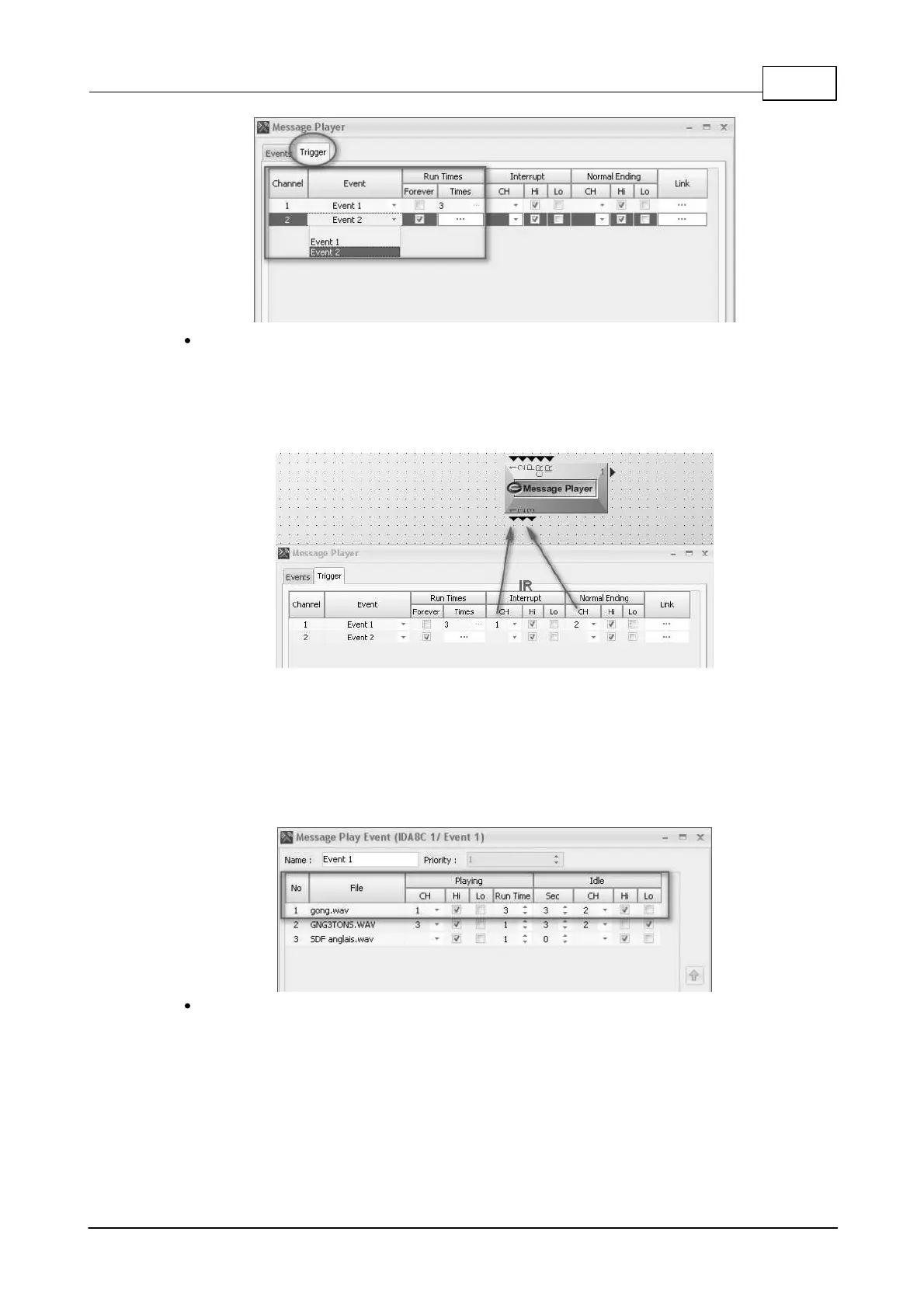

Set the logic out signal:
1. Interrupt: If the IR trigger interrupts the Event 1, the logic output CH 1 will send a signal
"High".
2. Normal Ending: If the Event 1 is set to end normal ending and not interrupted or cleared,
the logic output CH 2 will send a signal "High".
1. Playing: When the first message(gong.wav) is playing, the logic output Ch1 will send a
signal "High".
2. Idle: After playing gong.wav for 3 times, it will idle for 3 seconds before playing the next
message (GNG3TONS.WAV). During the idle time, the logic output Ch2 will send a signal
"High".
Interrupt Enable/Disable:
Open the window of Interrupt Setting to add items.

Ateis IDA8S Specifications

General

Brand	Ateis
Model	IDA8S
Category	Security System
Language	English
