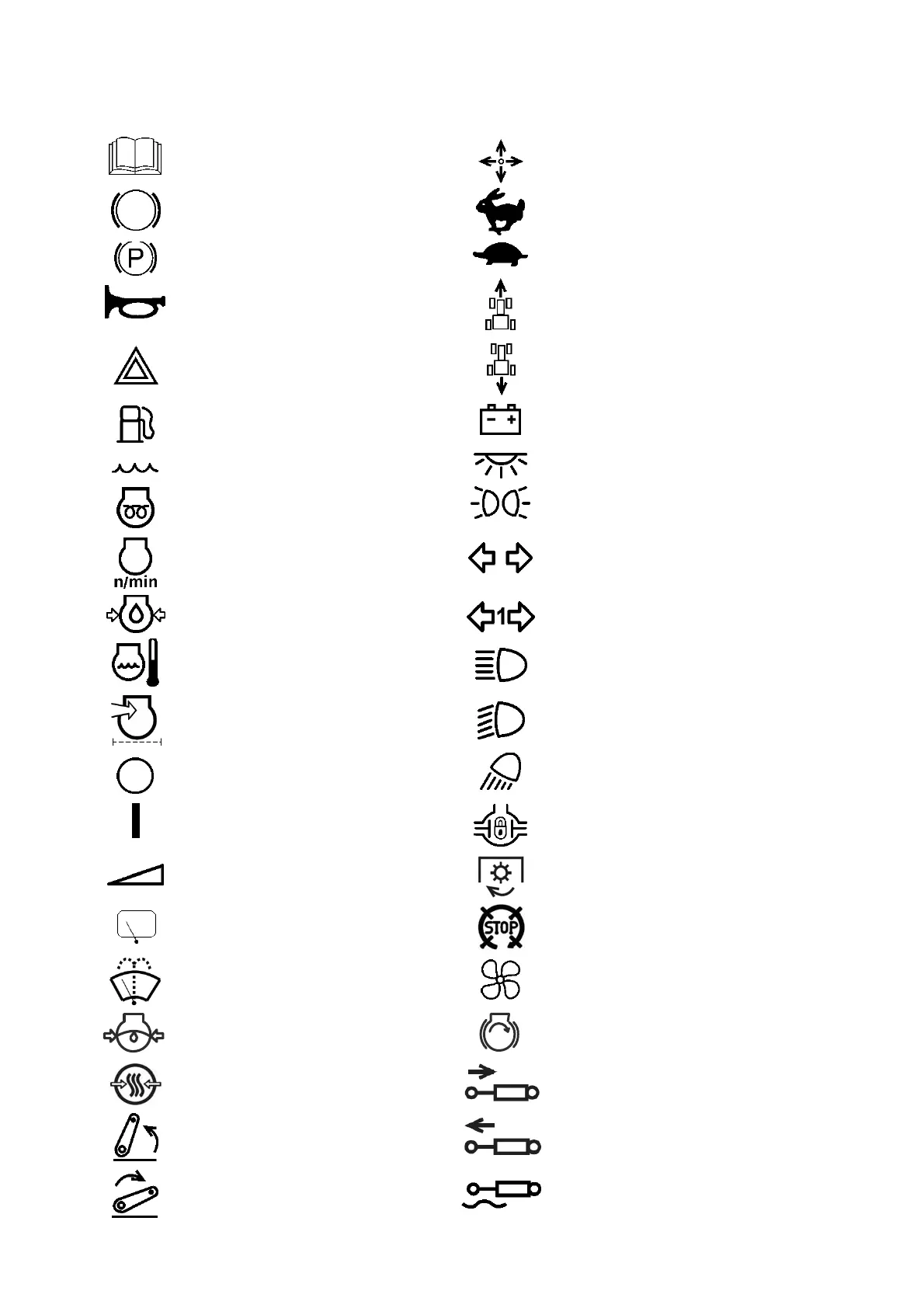

The manufacturer uses standard international symbols, regarding application of instru-
ments and control units. Given below are the symbols with indication of their meanings.
— see the manual;
— control manipulations;
— brake;
— fast;
— manual brake;
— slowly;
— audible beep;
— forward;
— warning alarm;
— reverse;
— fuel;
— battery charging;
— coolant;
— cab roof light;
— heating plugs;
— parking lights;
— engine speed;
— tractor turn indicator;
— oil pressure in the engine;
— trailer turn indicator;
— temperature of engine cool-
ant;
— upper beam;
— air filter clogged;
— low beam;
— off / stop;
— service lights;
— on / start;
— differential lock;
— gradual adjustment;
— PTO engaged;
— rear screen wiper;
— engine stop;
— front screen wiper and
washer;
— fan;
— oil pressure in HSC;
— engine start;
— air pressure in pneumatic sys-
tem
— external cylinder – retracting
— swivel lever – up
— external cylinder – protracting
— swivel lever – down
— external cylinder – floating
