892-0000010B OM
128

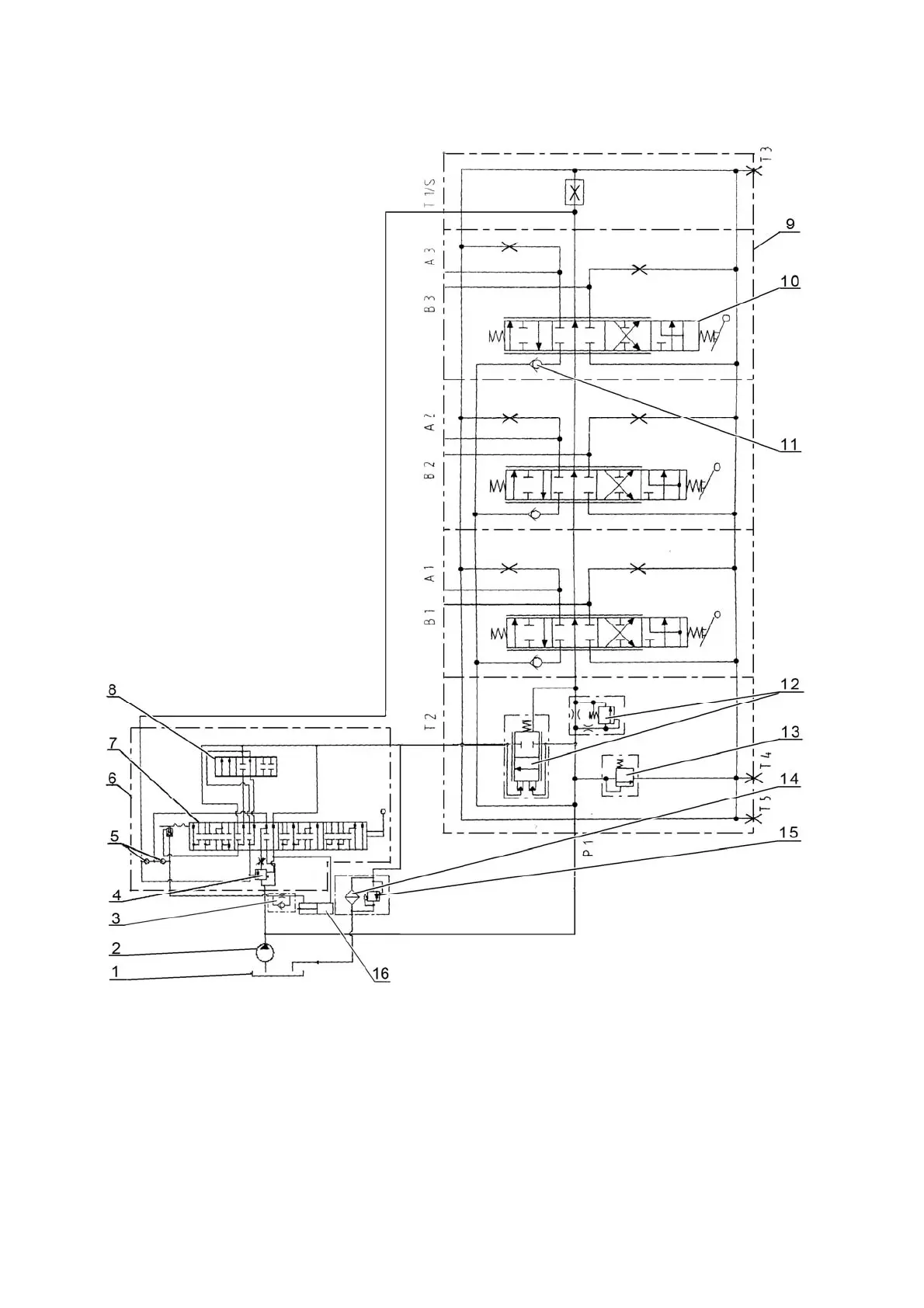

The HLL circuit hydraulic diagram with the RS-213 BELARUS distributor installed is
shown in Figure 3.11.5.
1 - tank; 2 - pump; 3 - retarding valve; 4 - priority valve; 5 - check valve; 6 – draft
(positional) control unit; 7 - sleeve; 8 - spool; 9 - RS-213 BELARUS distributor; 10 - spool;
11 - check valve; 12 - bypass valve; 13 - safety valve; 14 – hydraulic system filter; 15 -
filter valve; 16 - cylinder.
Figure 3.11.5 – HLL circuit hydraulic diagram with the RS-213 BELARUS distributor
installed.
