892-0000010B OM
147
The pendulum, being both part of combined unit and separately mounted, has following
installation variants:
- two positions in length;
- three positions in a transverse plane.
To change the lengthwise position it is necessary:
- to take pin 6 (Figure 3.13.8) out of bracket 10;
- displace the pendulum assembly until the second hole of clevis 1 of the pendulum
aligns with the hole in bracket 10;
- secure the pendulum new position with pin 6.

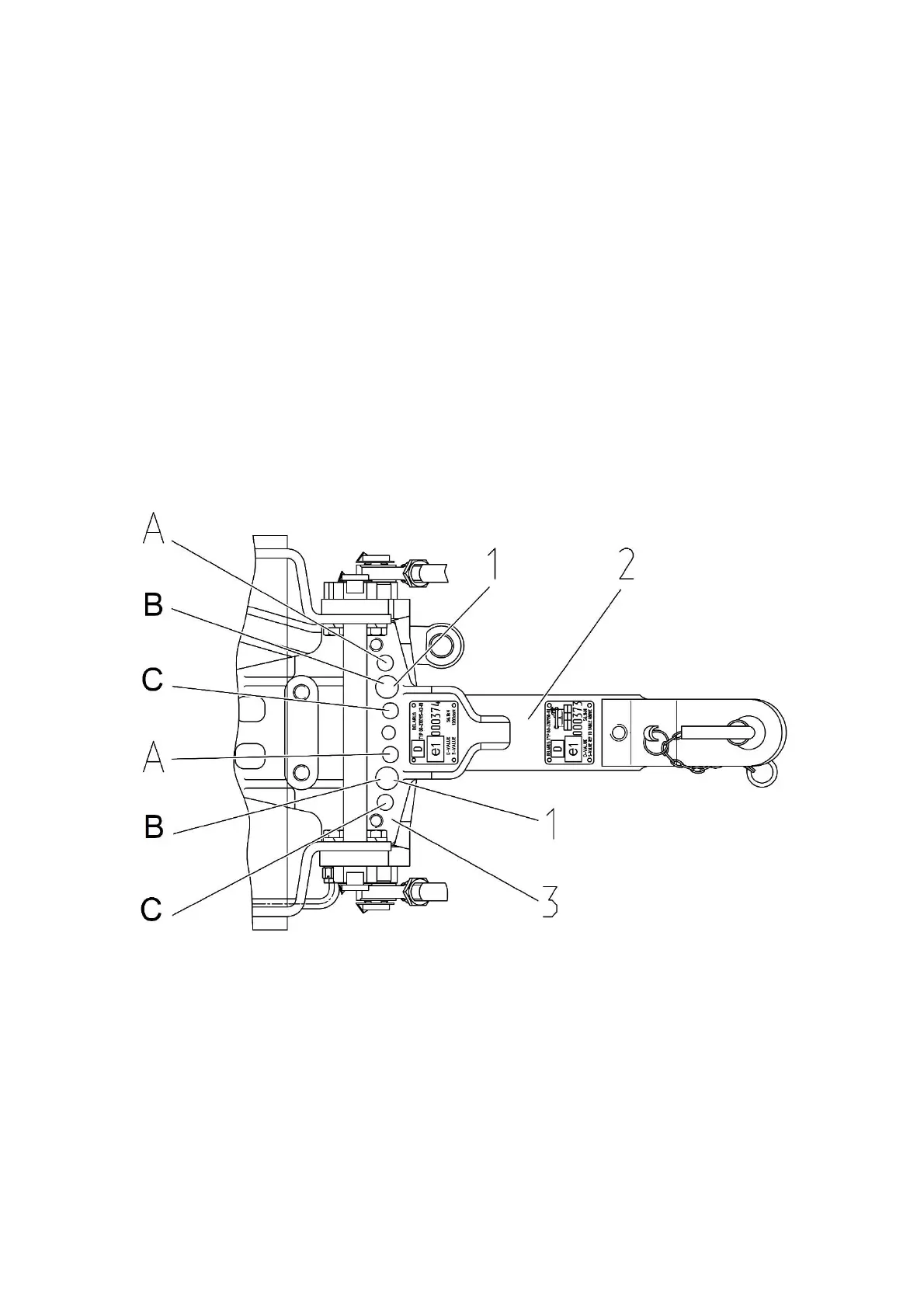

For displacement of the implement axis relative to the tractor axis, pendulum 2 (Figure
3.13.9), besides its main position, can be positioned at an angle of (4±1)º relative to the
longitudinal tractor axis:
- position +(4±1)º relative to the tractor axis – pendulum 2 is fixed by pins 1, inserted
into holes A of bracket 3;
- main position – the pendulum is fixed by pins 1, inserted into holes B of bracket 3;
- position -(4±1)º relative to the tractor axis – the pendulum is fixed by pins 1, inserted
into holes C of bracket 3.
1 – pin; 2 – pendulum; 3 – bracket of tow hitch.
Figure 3.13.9 – Variants of pendulum positioning relative to the longitudinal tractor axis
