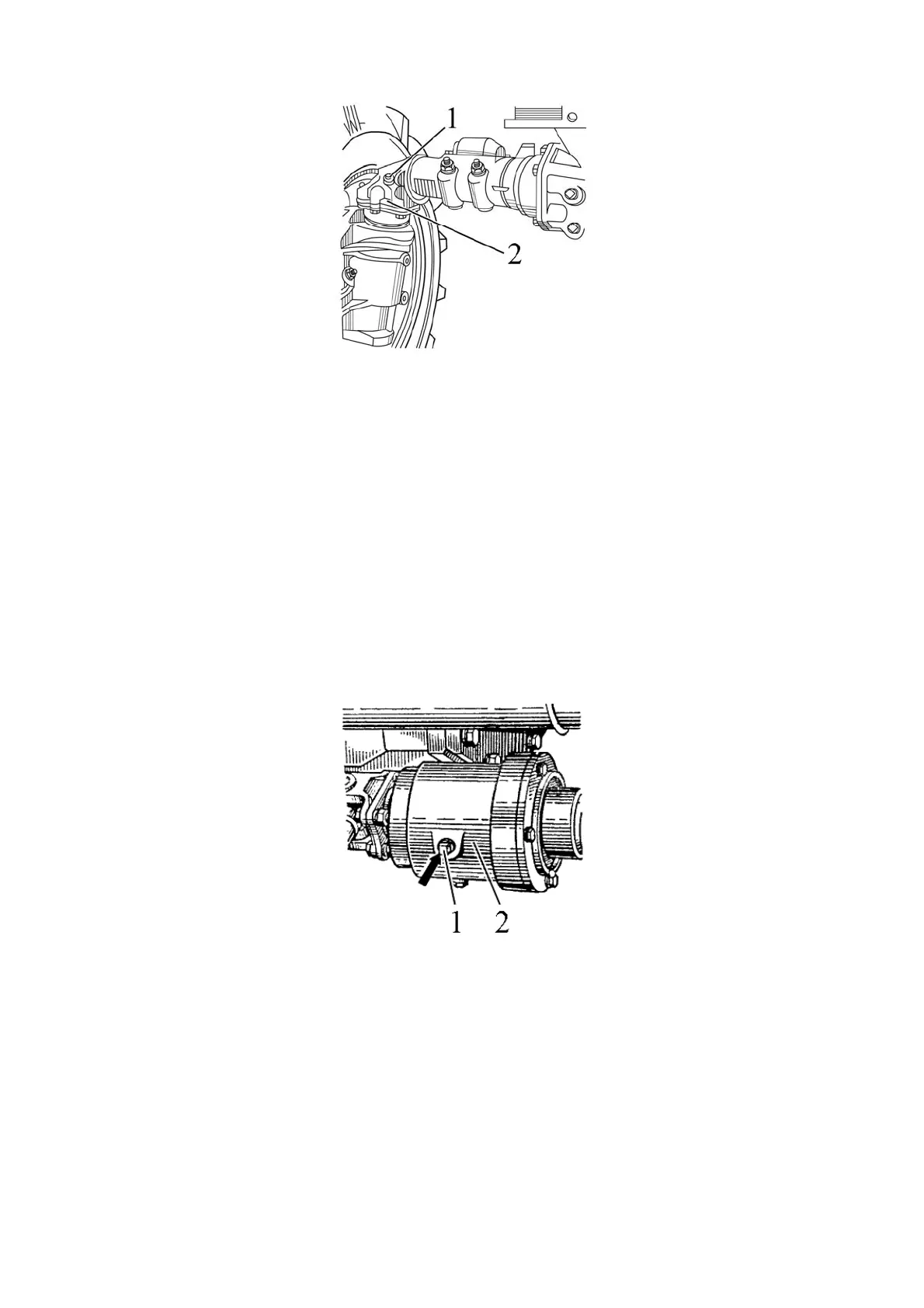

1 – level-fill opening; 2 – housing of upper bevel gear and pinion pair.
Figure 6.4.7 – Check of oil level in upper bevel gear and pinion pairs of FDA with
bevel wheel gear groups
6.4.2.6 Operation 14. Check of oil level in intermediate bearing of FDA cardan drive
To check the oil level in intermediate bearing 2 (figure 6.4.8) it is necessary to perform
the following:
- set the tractor on the flat horizontal ground, stop the engine and put the parking
brakes on;
- turn-off plug 1 of level-fill opening of intermediate bearing 2;
- check that the oil level matches the lower edge of level-fill opening;
- if necessary, refill oil in intermediate bearing 2;
- put back in place the plug of level-fill opening.
1 – plug of level-fill opening; 2 – intermediate bearing of FDA cardan drive ;
Figure 6.4.8 – Check of oil level in intermediate bearing of FDA cardan drive
6.4.2.7 Operation 15 Lubrication of pivot axis bearing of FDA
Note – The operation is performed on the BELARUS-892.2 tractor (FDA with spur
planetary wheel gear groups).
To lubricate FDA pivot bearings 3 perform the following:
- remove caps 1 (Figure 6.4.9) from four greasers 2 of bearings 3;
- clean greasers 2 to remove accumulated dirt and consolidated grease;
- squirt greasers 2 with grease, performing six injections.
