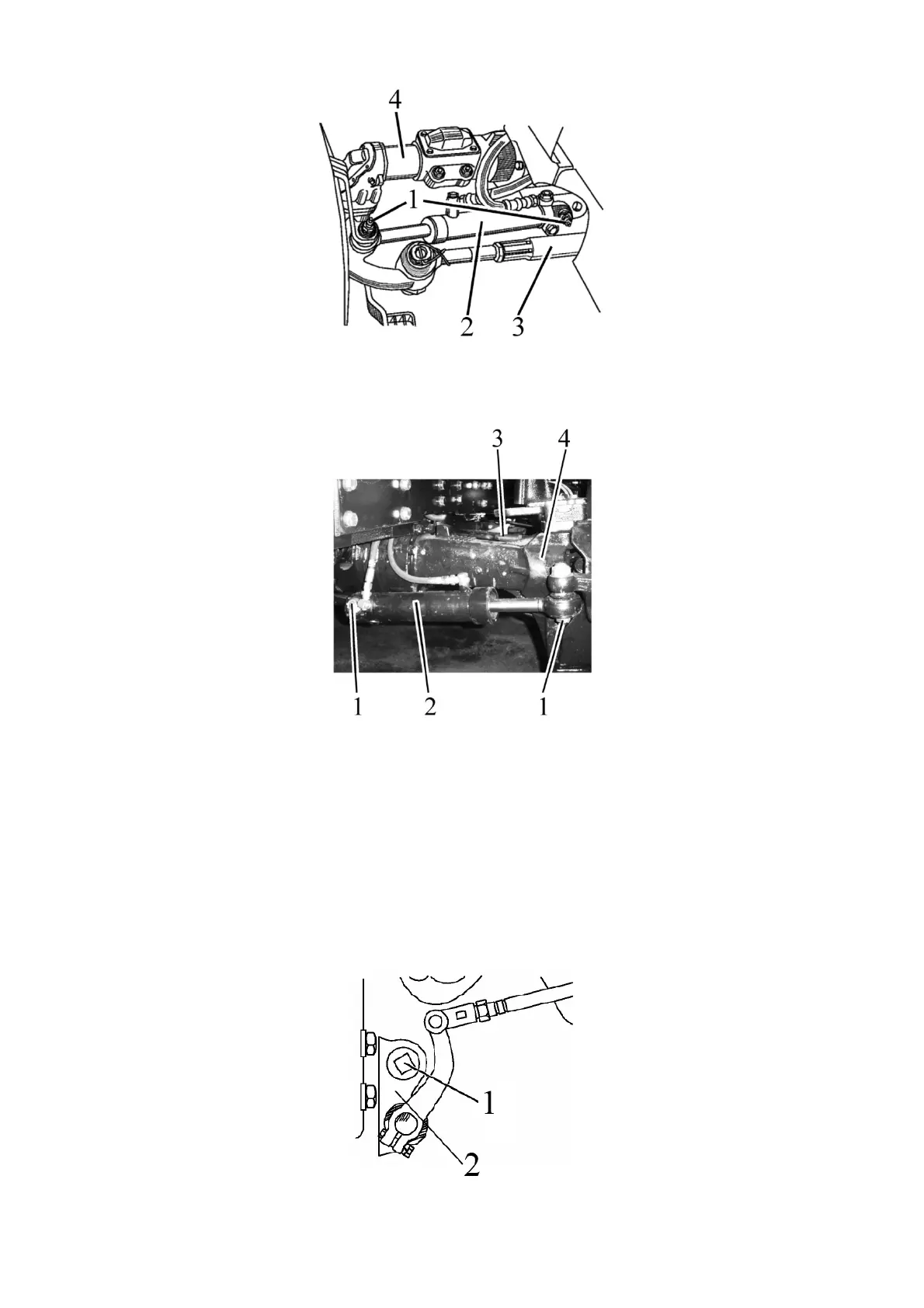

1 – greaser; 2 – HSC hydraulic cylinder; 3 – steering link; 4 – FDA
Figure 6.4.18 – Lubrication of HSC hydraulic cylinder hinged joints for tractors with FDA
with bevel wheel gear groups (BELARUS - 892).
1 – greaser; 2 – HSC hydraulic cylinder; 3 – steering link; 4 – FDA
Figure 6.4.19 – Lubrication of HSC hydraulic cylinder hinged joints for tractors with
FDA with spur planetary wheel gear groups (BELARUS – 892.2)
6.4.3.6 Operation 25. Lubricate clutch release yoke bearing
To lubricate clutch release yoke bearing perform the following:
- unscrew plug 1 (Figure 6.4.20) of the left side of clutch case 2;
- insert a tip of grease gun into the hole;
- via greaser screwed into the body of clutch release for lubrication of clutch release
bearing, perform from 4 to 6 injections of grease specified in Table 6.7.1.
1 – plug; 2 – clutch housing.
Figure 6.4.20 – Lubricate clutch release yoke bearing
