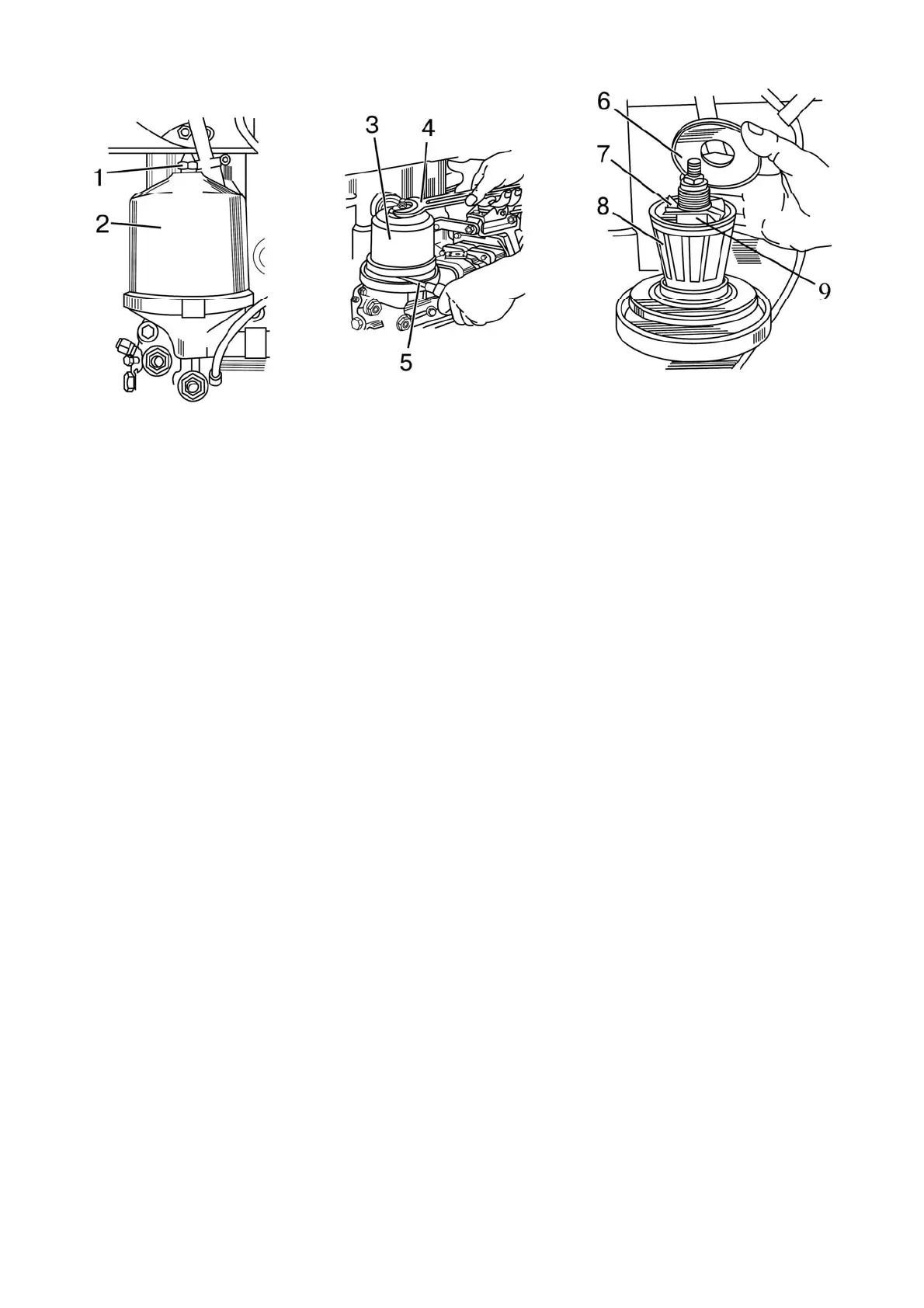

1 – nut; 2 – cap; 3 – rotor cup; 4 – wrench, 5 – screwdriver (stem); 6 – cover;
7 – impeller; 8 – filtering mesh; 9 – rotor.
Figure 6.4.22 – Cleaning the rotor of the engine’s centrifugal oil filter
ATTENTION: AFTER THE ENGINE STOP, THE NOISE OF ROTOR THAT KEEPS
ROTATING SHALL BE HEARABLE FOR 30 TO 60 MORE SECONDS. THIS INDICATES
NORMAL OPERATION OF THE CENTRIFUGAL OIL FILTER!
