- do not check the electric current by spark test as it will result in immediate break-down
of transistors.
Repair operations connected with application of electric welding for the tractor shall be
carried out while the AB switch is off.
To avoid ignition or explosion hazard, prevent the fuel tank, engine fuel system and ac-
cumulator battery from being close to open flame sources.
Repair operations associated with application of electric welding for the tractor shall be
carried out while the AB switch is “off”.
To avoid ignition or explosion hazard, prevent the fuel tank, engine fuel system and ac-
cumulator batteries from being close to the open flame sources.
6.6.3 Safety rules for use of levelling jacks and indication of places for their installation
Use leveling jacks to lift tractor, and after lifting insert backing blocks and limit stops
under the tubes of wheel gear group, under the axle beam of front wheels and basic parts
of tractor framework.

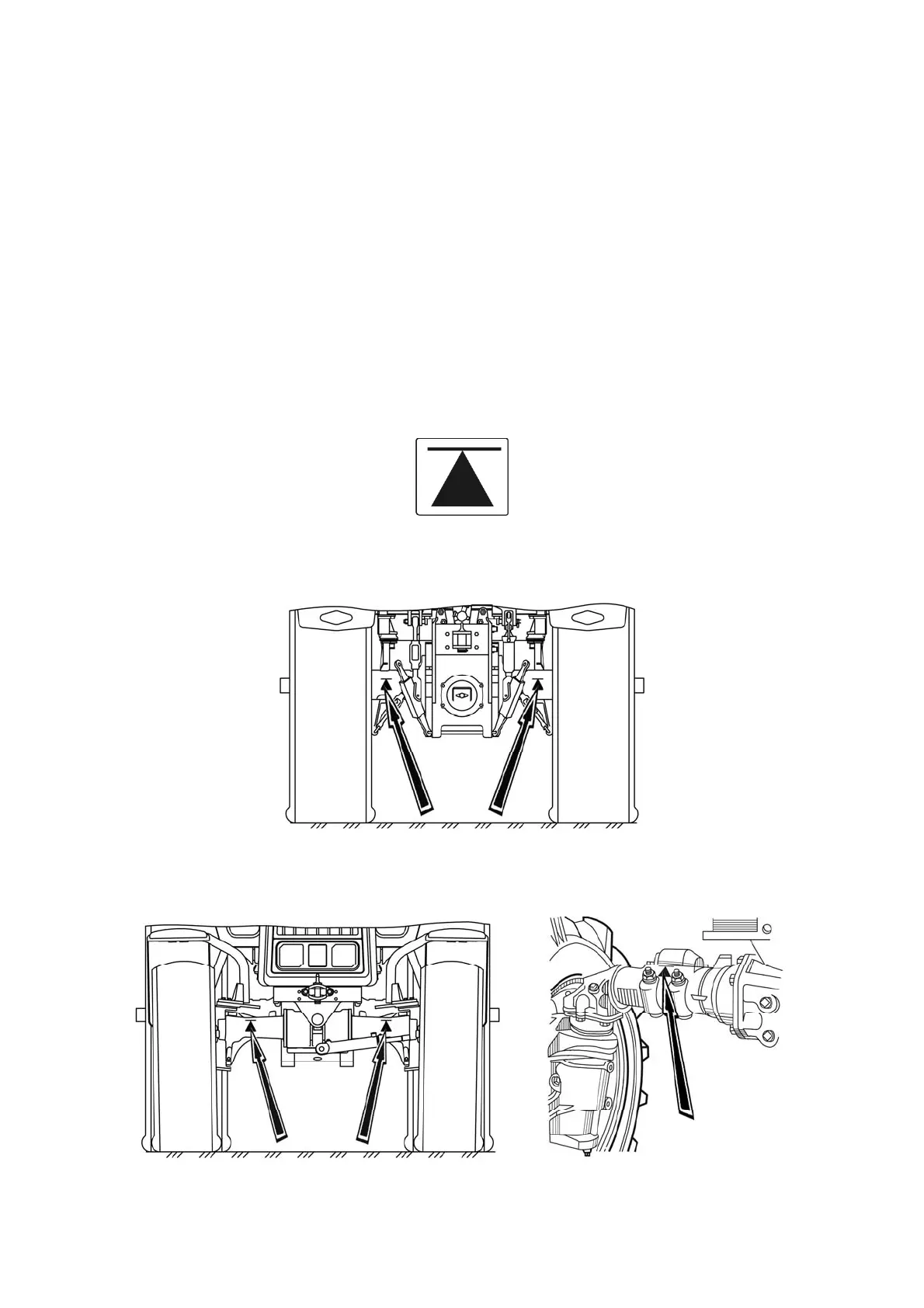

Places for leveling jack installation on the tractor are marked by a sign shown in figure
6.6.1.
Figure 6.6.1 – Sign of a place for leveling jack installation
To lift tractor rear elements, set leveling jacks (or a single jack) under the rear semi-axle
tubes as illustrated in Figure 6.6.2.
Figure 6.6.2– Scheme of leveling jack installation for lifting tractor rear elements
To lift front elements of the tractor set leveling jacks (or single jack) under the front driving
axle beam as illustrated in Figure 6.6.3.
For tractors with FDA with spur planetary wheel For tractors with FDA with bevel wheel
gear groups wheel gear groups
Figure 6.6.3 – Scheme of leveling jacks installation for lifting of the front elements of the tractor
