Belarus 892 - Page 88

892-0000010B OM
88

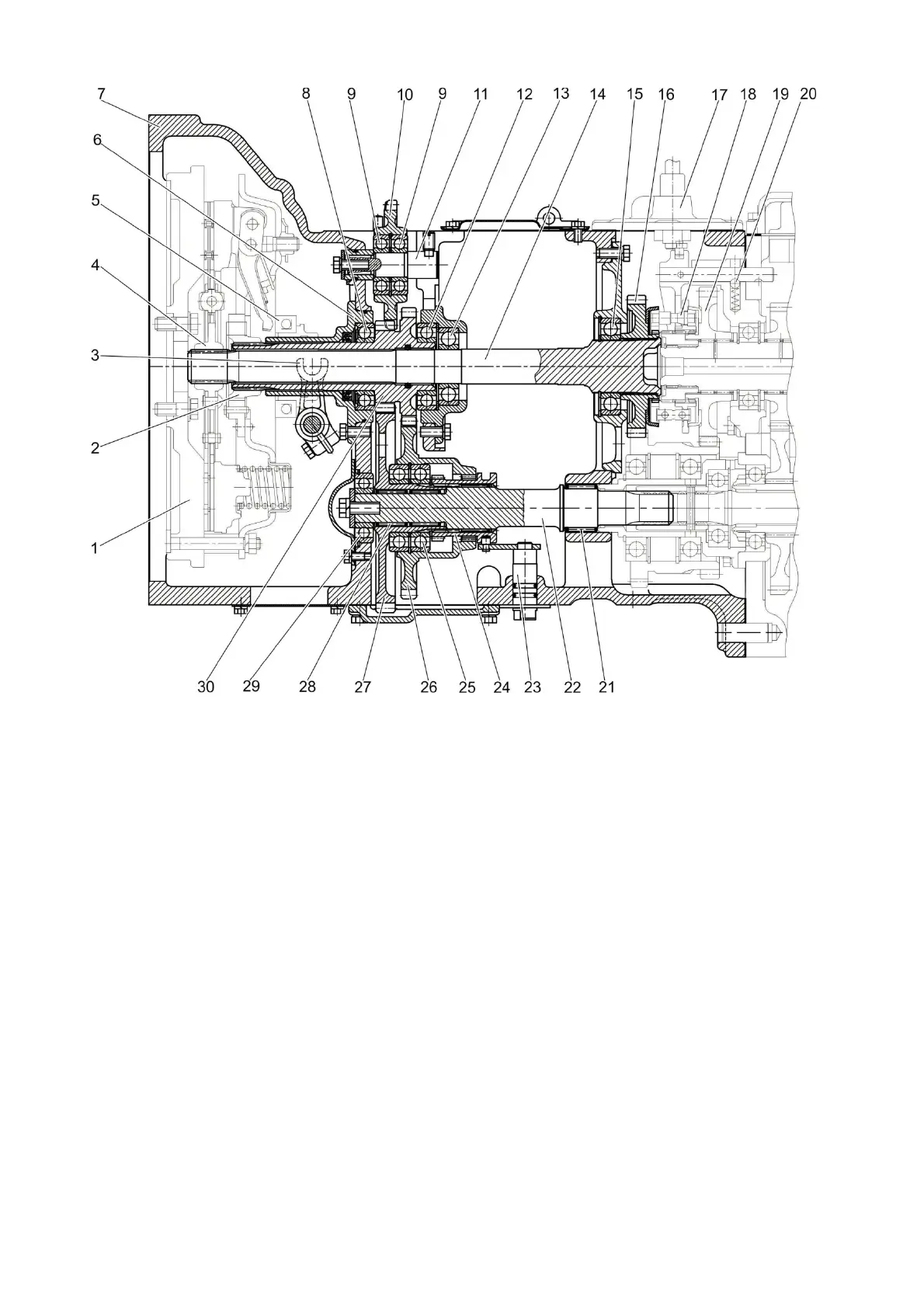

1 - flywheel; 2 - floating bushing; 3 - yoke; 4 - hub; 5 - release bearing; 6 – shifter bracket; 7
- clutch housing; 8, 9, 12, 13, 15, 25, 29 - bearing; 10 – hydraulic pump drive gear; 11 - axle;
14 - power shaft; 16 - drive gear of the reducing gear unit; 17 – gear unit control mechanism;
18 - synchronizer; 19 - driven gear of the reducing gear unit; 20 - ball; 21, 28 - needle bearing
with outer race; 22 - driven shaft of the PTO drive; 23 - control shaft; 24 - toothed clutch; 26
- driven gear of the PTO drive (1000 rpm mode); 27 - driven gear of the PTO drive (540 rpm
mode); 30 - drive pinion-shaft of the PTO drive.
Figure 3.2.7 – Clutch housing with reducing synchronized gear unit
