892-0000010B OM
93

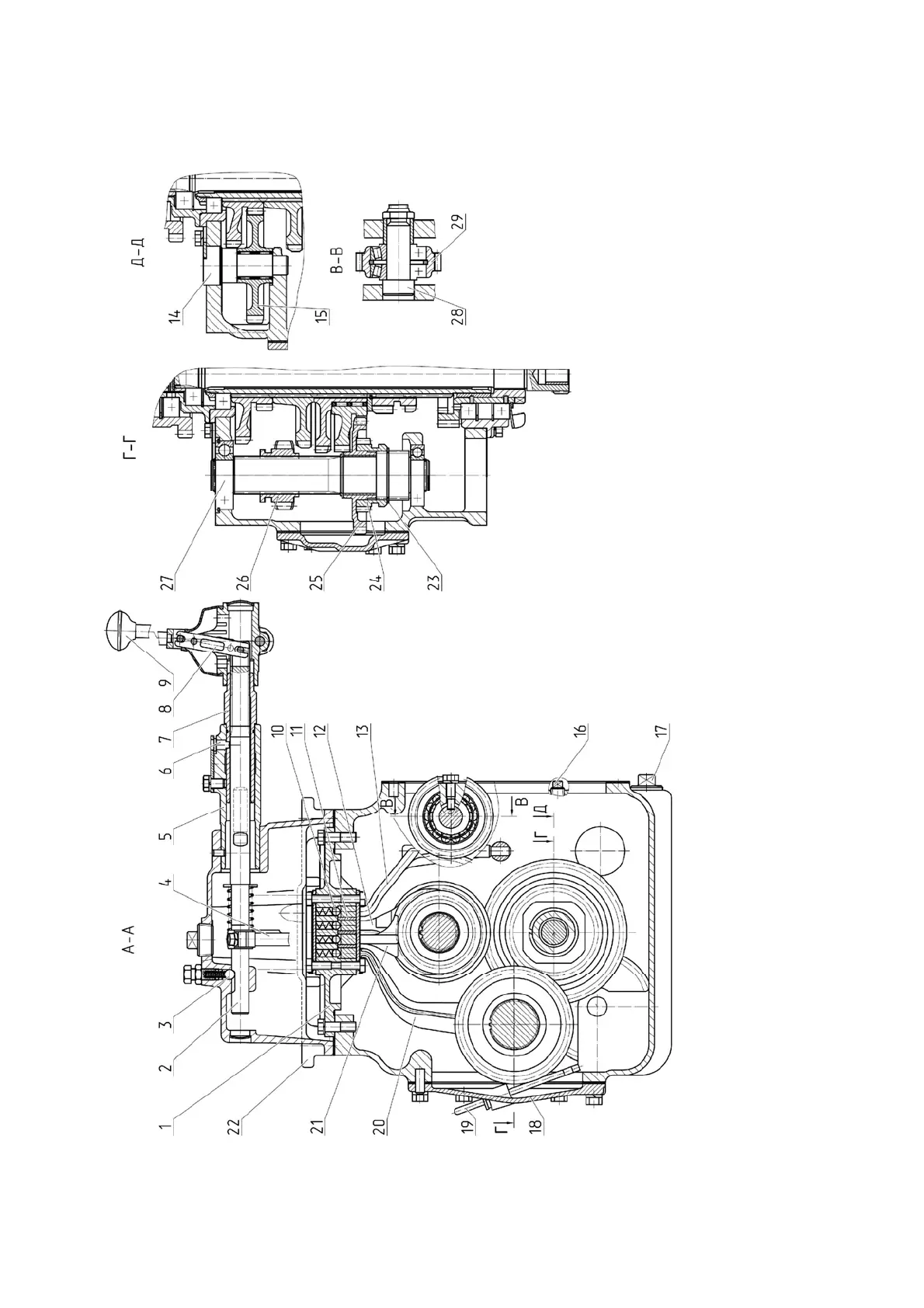

1 - yoke body; 2 - shaft; 3 - ball; 4 - gear lever; 5 - pipe; 6 - stopper; 7 - support; 8 - arm; 9 - gearbox control lever; 10 - retainer balls; 11 -
locking bars; 12 - yoke of 4th and 5th speeds; 13 - arm of range gear unit; 14 - axle of intermediate reverse gear; 15 - intermediate reverse
gear; 16 - check plug; 17 - drain plug; 18 - cover; 19 - oil dipstick; 20 - yoke of 1st speed and reverse; 21 - yoke of 3rd and 6th speeds; 22
- cover; 23 - spring ring; 24 - gear; 25 - driven gear for low speeds and reverse; 26 - gear of low speed and reverse speeds; 27 - shaft o
1st speed and reverse; 28 - axle of FDA drive gear; 29 - FDA drive gear
Figure 3.3.2
