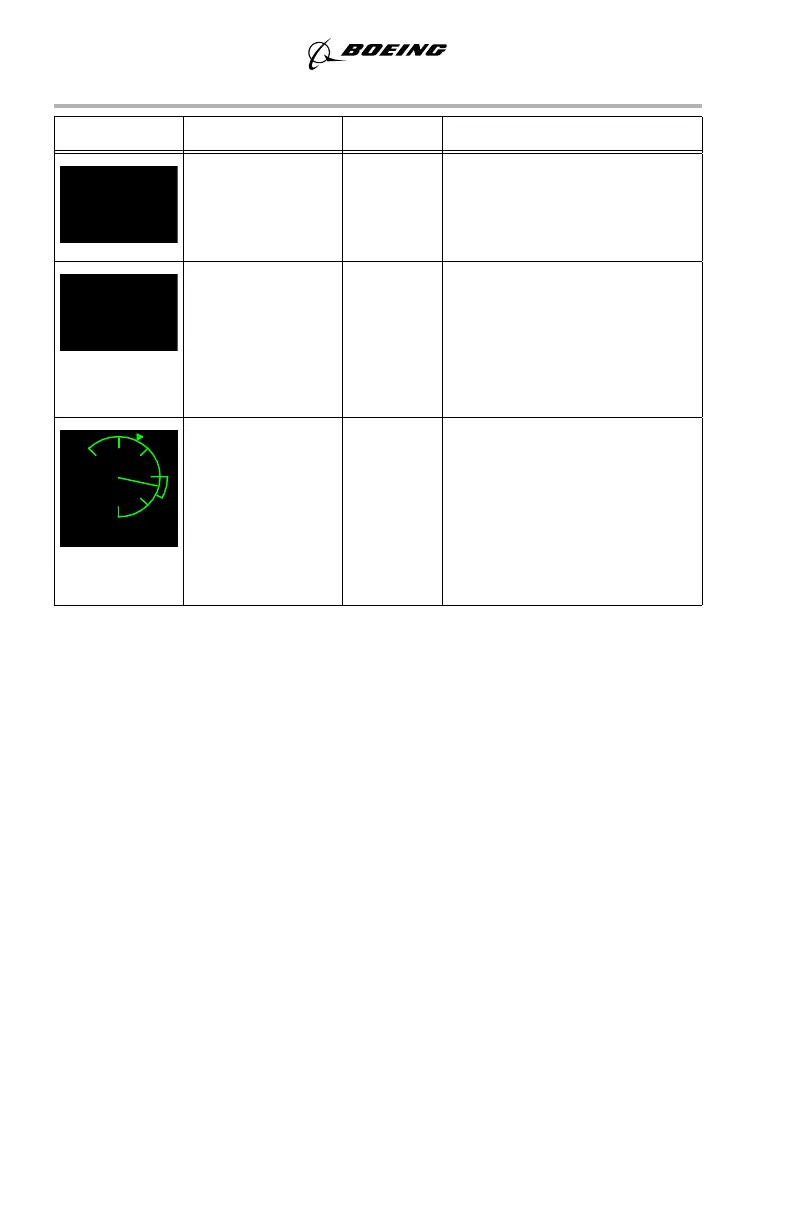

SYMBOL NAME MODE REMARKS
Approach
warning
AIII
approach
Displayed below 500 feet if
approach monitoring
tolerances are exceeded or
AIII capability is lost.
Tail strike
warning
PRI in
flight,
AIII
approach,
IMC,
VMC
Displayed when a tail strike is
likely during landing. Tail
strike monitoring is active
below 100 feet AGL.
Angle of attack
scale and
indicator
PRI in
flight,
AIII
approach,
IMC,
VMC
Displays current angle of
attack, stick shaker trip point
and approach reference band.
Tic marks every 5°.
Approach reference band is
added after the first flap
extension.
APCH WARN
TAILSTRIKE
5.0
