Boeing 737-800 - Lower Display Switching

737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – System Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.21.11

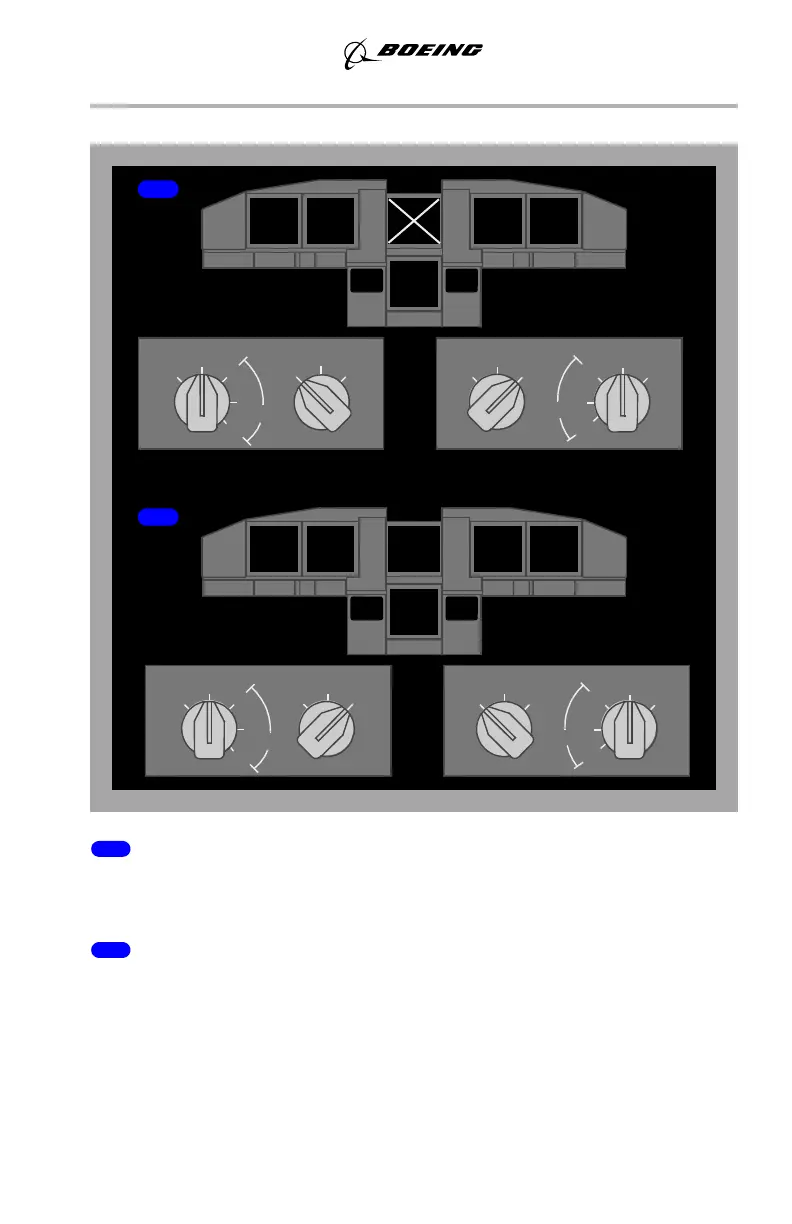

Lower Display Switching
1 LOWER DU Switch to ENG PRI
If the LOWER DU switch is turned to ENG PRI, the engine display moves to the
lower DU and the upper DU blanks.
2 LOWER DU Switch to ND
If the LOWER DU switch is turned to ND, the engine display is shown on the
upper DU and the navigation display is shown on the lower DU. When the MFD
ENG switch is selected, the compact engine display is shown on the upper DU.
PFD ND
ENGINE
ND PFD
NORM
ENG
PRI
LOWER DU
PFD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
PFD
OUTBD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
NORM
ENG
PRI
LOWER DU
OUTBD
PFD ND ENGINE ND PFD
NORM
ENG
PRI
LOWER DU
PFD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
PFD
OUTBD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
NORM
ENG
PRI
LOWER DU
OUTBD
1
2
ND
MFD
ND
MFD
ND
MFD
ND
MFD
ND
September 28, 2006
