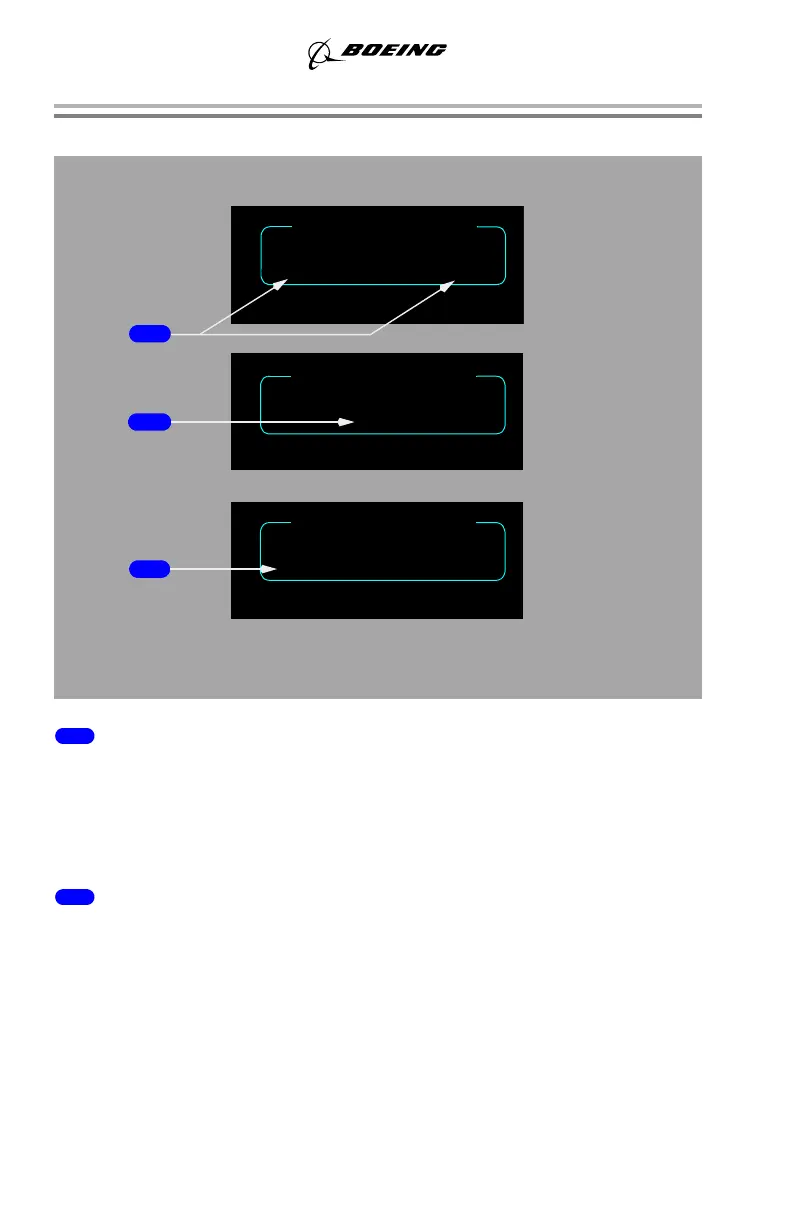

Fuel Alert Indications
1 Fuel LOW Alert
Displayed (amber) –
• fuel tank quantity less than 907 kgs in related main tank
• display remains until fuel tank quantity is increased to 1134 kgs
The fuel quantity digits on tank(s) with low fuel quantity turn amber.
2 Fuel Configuration (CONFIG) Alert
Displayed (amber) –
• either engine running
• center fuel tank quantity greater than 726 kgs; and
• both center fuel tank pump switches positioned OFF
The quantity digits on the center tank fuel quantity indicator turn amber.
UPPER DISPLAY UNIT
FUEL QTY-KGS X 1000
TOTAL
0.41
1.0
0.2 0.41
LOW LOW
1
FUEL QTY-KGS X 1000
TOTAL
3.86
11.5
3.86 3.86
CONFIG
2
FUEL QTY-KGS X 1000
TOTAL
2.5
5.7
.2 3.1
IMBAL
3
