Boeing 737-800 - Inboard Display Switching

737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – System Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.21.9

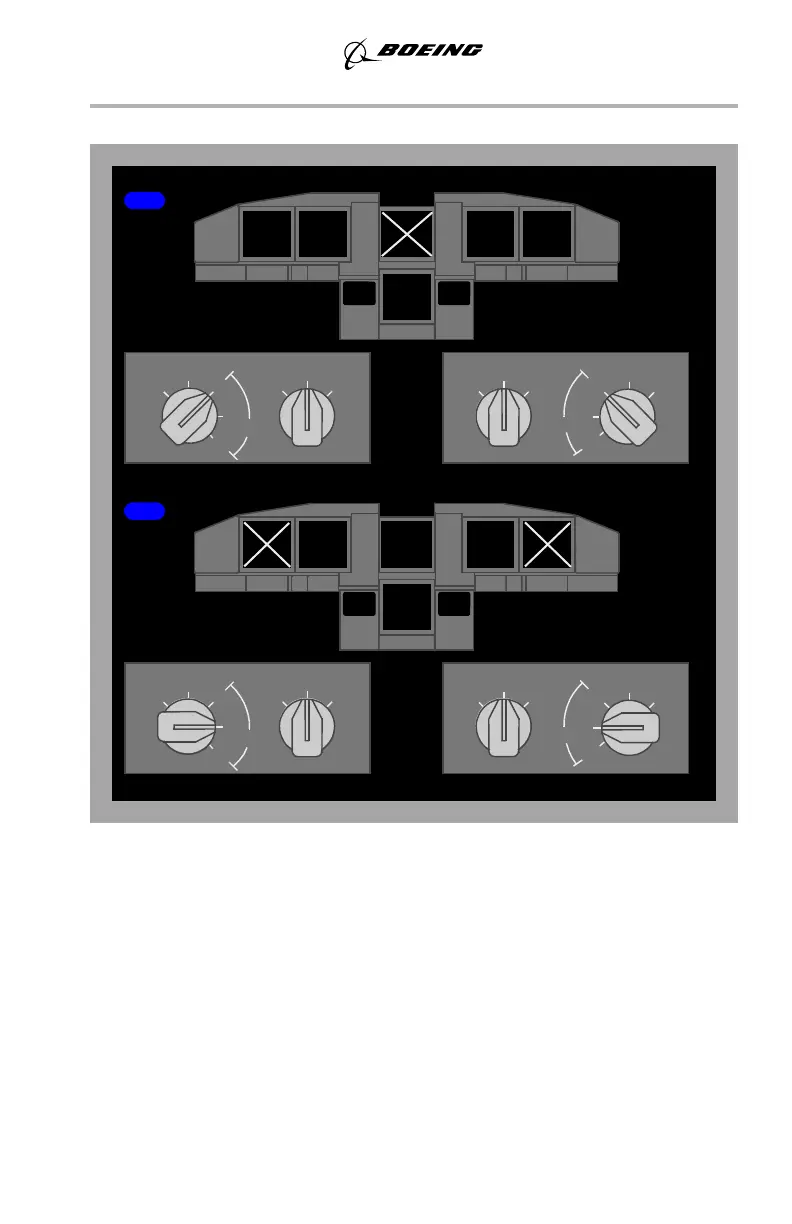

Inboard Display Switching
ENGINE PFD
1
PFD
NORM
ENG
PRI
LOWER DU
PFD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
PFD
OUTBD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
NORM
ENG
PRI
LOWER DU
OUTBD
ENGINE PFD
2
PFD
NORM
ENG
PRI
LOWER DU
PFD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
PFD
OUTBD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
NORM
ENG
PRI
LOWER DU
OUTBD
ENGINE
ND
MFD
ND
MFD
MFD
ND
ND
MFD
September 28, 2006
