737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 10.11.51

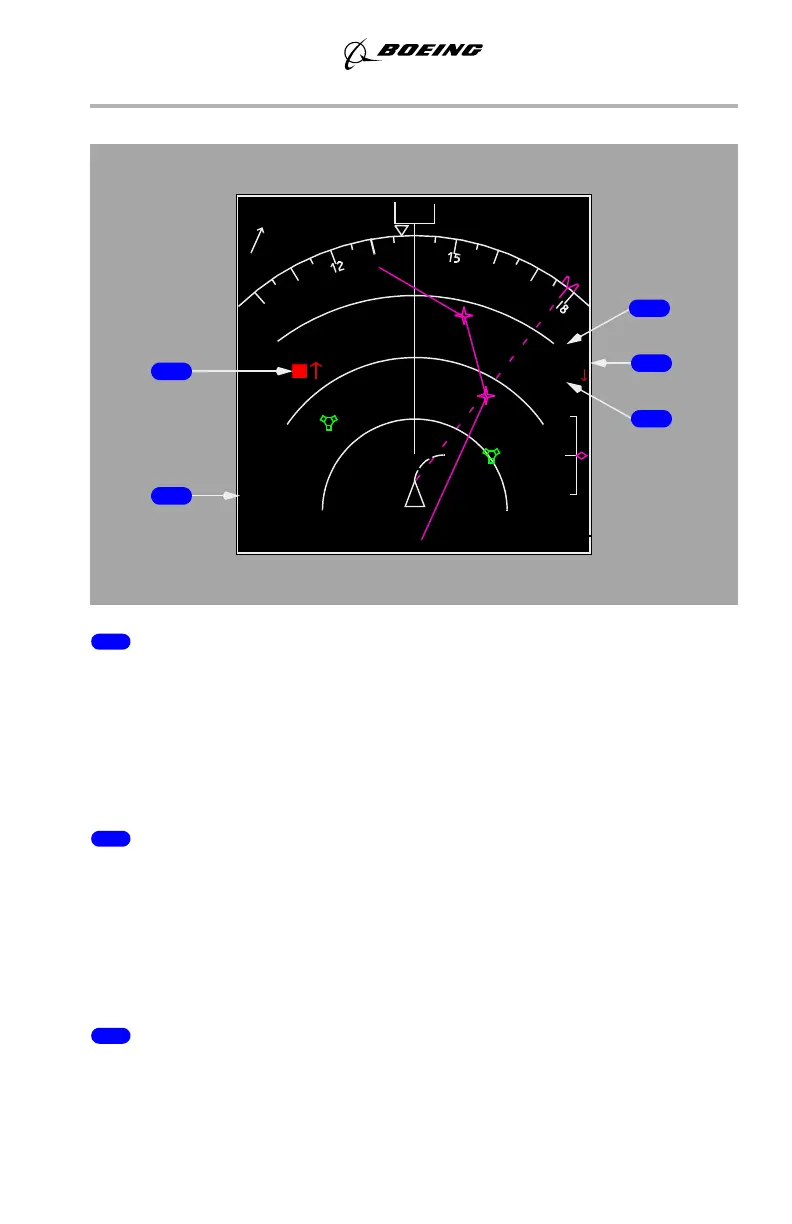

TCAS Messages
1 TCAS Traffic Symbols
Note: Refer to Section 41 of this chapter for a detailed explanation of the traffic
symbology.
Indicates position of traffic targets.
Displayed in expanded MAP, center MAP, expanded APP and expanded VOR
modes and TFC is selected on the EFIS control panel.
2 TCAS Annunciations
TFC (cyan) – Indicates TFC selected on EFIS control panel in expanded MAP,
center MAP, expanded APP and expanded VOR.
TCAS TEST (cyan) – TCAS in test mode.
TA ONLY (cyan) – TCAS TA mode only.
TCAS OFF (amber) – TCAS off.
3 Offscale (red or amber)
TA (amber) or RA (red) is beyond the selected display range and TFC is selected
on the EFIS control panel.
FMC L
OFFSCALE
TRAFFIC
TFC
RA 5.3 +03
-03
MAG
TRK
140
GRH
0838.4z
NM
32.5
338
336
o
/15
326
GS TAS
40
YKM
GRH
FRED
ELN
