PFD/ND Display System – Overview
Display Units
1 Captain Outboard Display Unit
2 Captain Inboard Display Unit
3 Upper Display Unit
4 First Officer Inboard Display Unit
5 First Officer Outboard Display Unit
6 Lower Display Unit

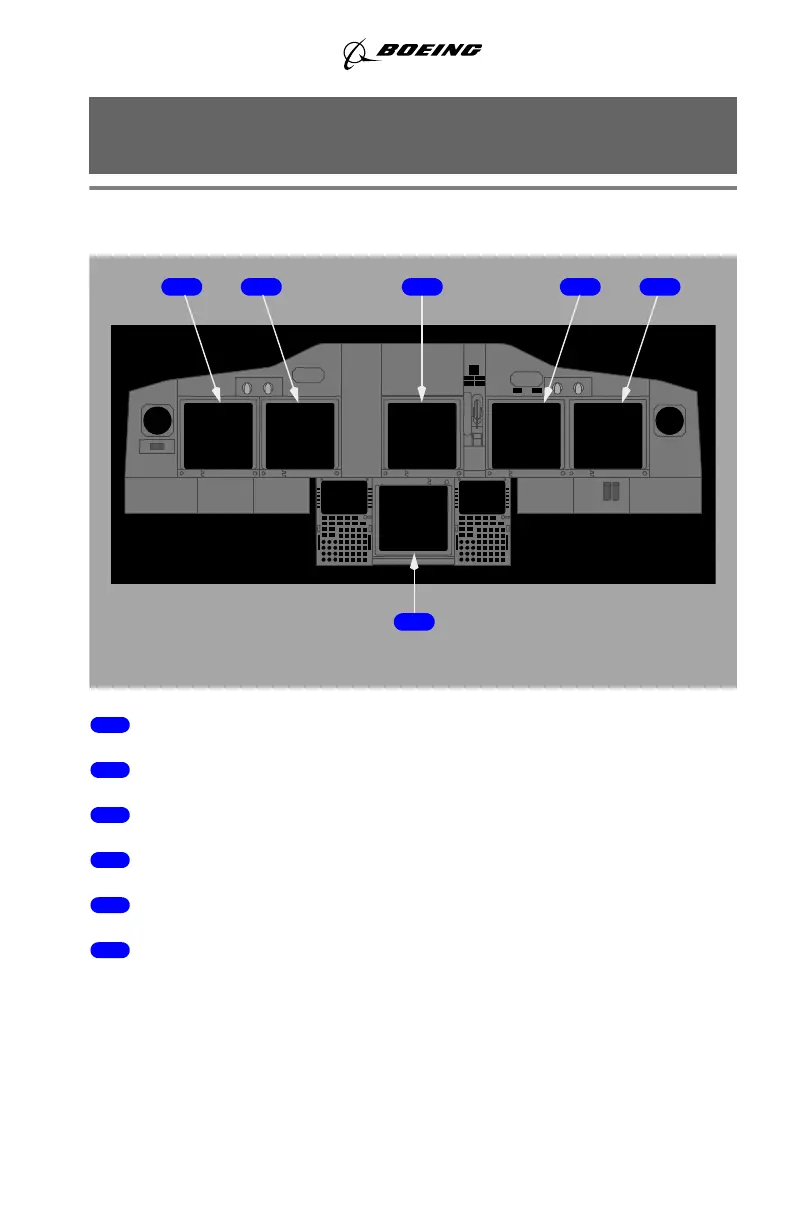

LEFT, CENTER AND RIGHT FORWARD PANEL
1
6
2 3 4 5
