Boeing 737-800 - Display Select Panels

737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.16.6 D6-27370-866-EGP
2 Displays Control Panel Switch – EFIS
• BOTH ON 1 – both pilots’ displays are set to the Captain’s EFIS control
panel
• NORMAL – the left EFIS control panel controls the Captain’s displays
and the right EFIS control panel controls the First Officer’s displays
• BOTH ON 2 – both pilots’ displays are set to the First Officer’s EFIS
control panel.
Display Select Panels
1 Main Panel Display Units (MAIN PANEL DUs) Selector
Selects what is displayed on the respective outboard and inboard display units:
• Outboard Primary Flight Display (OUTBD PFD) – displays the PFD on
the outboard display unit and blanks the inboard display unit
• Normal (NORM) – displays PFD on the outboard display unit and ND
on the inboard display unit
• Inboard Engine Primary (INBD ENG PRI) – displays the primary
engine instruments on the inboard display unit and the PFD on the
outboard display unit
• Inboard Primary Flight Display (INBD PFD) – displays the PFD on the
inboard display unit and blanks the outboard display unit
PFD
OUTBD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
NORM
ENG
PRI
LOWER DU
ND
MFD
NORM
ENG
PRI
LOWER DU
PFD
PFD
NORM
INBD
ENG
PRI
MAIN PANEL DUs
OUTBD
ND
MFD

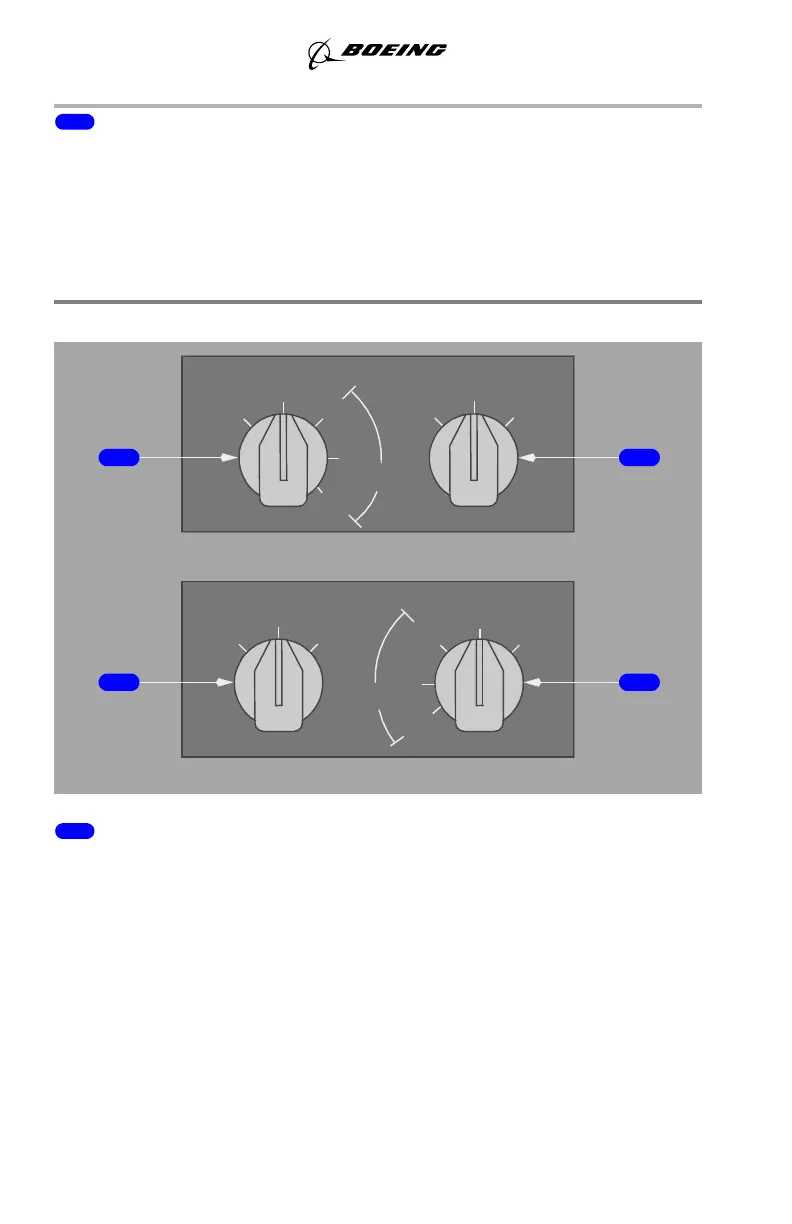

LEFT FORWARD PANEL
2 1
RIGHT FORWARD PANEL
1 2
