PFD – Altitude Indications

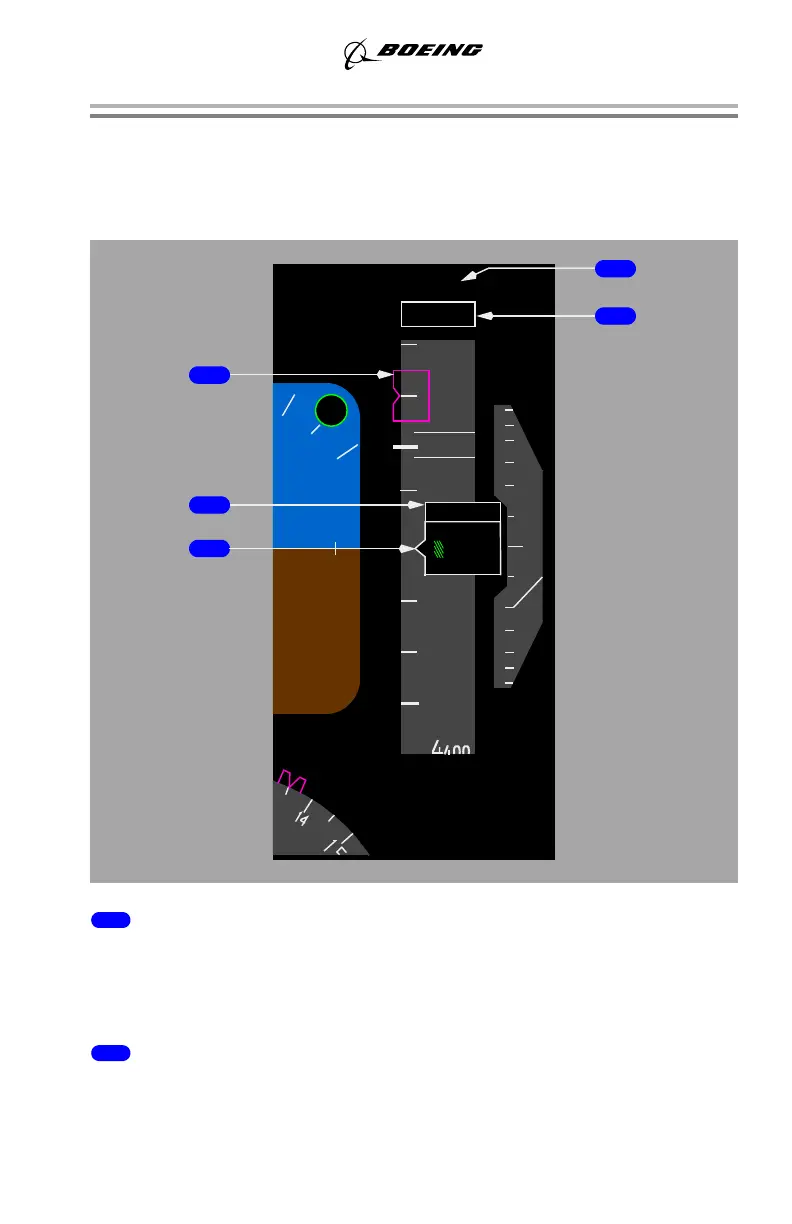

Altitude Indications– General
The altitude indication displays ADIRS altitude and other altitude related
information.
1 Selected Altitude Bug (magenta)
Indicates the altitude set in the MCP altitude window.
When the selected altitude is off scale, the bug is parked at the top or bottom of
the tape, with only one half the bug visible.
2 Metric Digital Readout (readout and box–white, metric symbol–cyan)
Displays current altitude in meters when MTRS is selected on the EFIS control
panel.
600
4
5200
100
5
OM
1000
HPA
1011
BARO
450
M
1554
1463M
800
20
80
000
6
2
1
1
2
6
5
4
4
1
2
3
5
