Introduction
Thermal anti-icing (TAI), electrical anti-icing, and windshield wipers are the
systems provided for ice and rain protection.
The anti-ice and rain systems include:

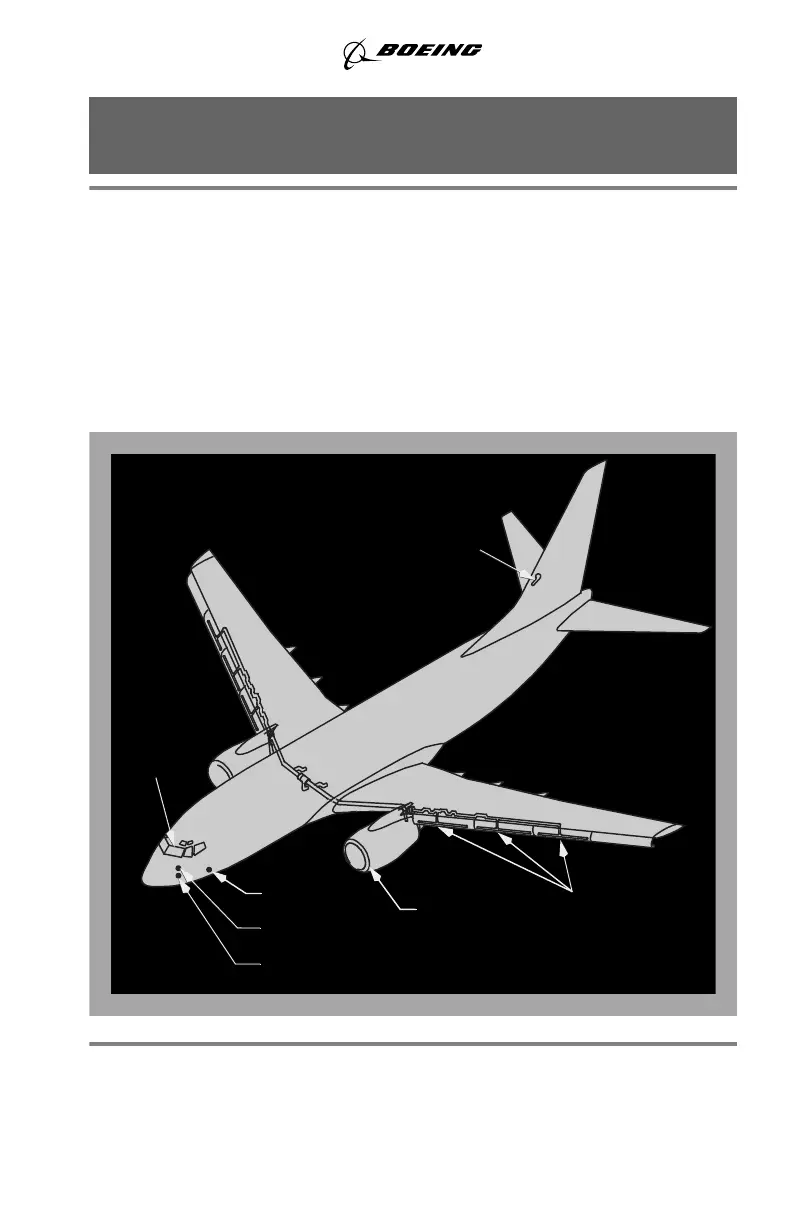

Anti-Ice Components Diagram
Flight Deck Window Heat
Flight deck windows consist of glass panes laminated to each side of a vinyl core.
• Flight Deck Window Heat
• Windshield Wipers
• Probe and Sensor Heat
• Engine Anti-Ice System
• Wing Anti-Ice System
(2 PLACES)
ALPHA VANES
(3 PLACES)
PITOT PROBES
TEMPERATURE
PROBE
ENGINE
LEADING EDGE
SLATS
COWL LIP
FLIGHT DECK
WINDOW HEAT
WINDSHIELD
WINDOWS
ELEVATOR PITOT
PROBES (2 PLACES)
WIPERS
