Boeing 737-800 - Basic Equipment Operating - Captain Instrument Panel

737 Flight Crew Operations Manual
Electrical -
System Description
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
6.20.16 D6-27370-866-EGP
Warnings
• stall warning system
• aural warnings
• master caution light recall

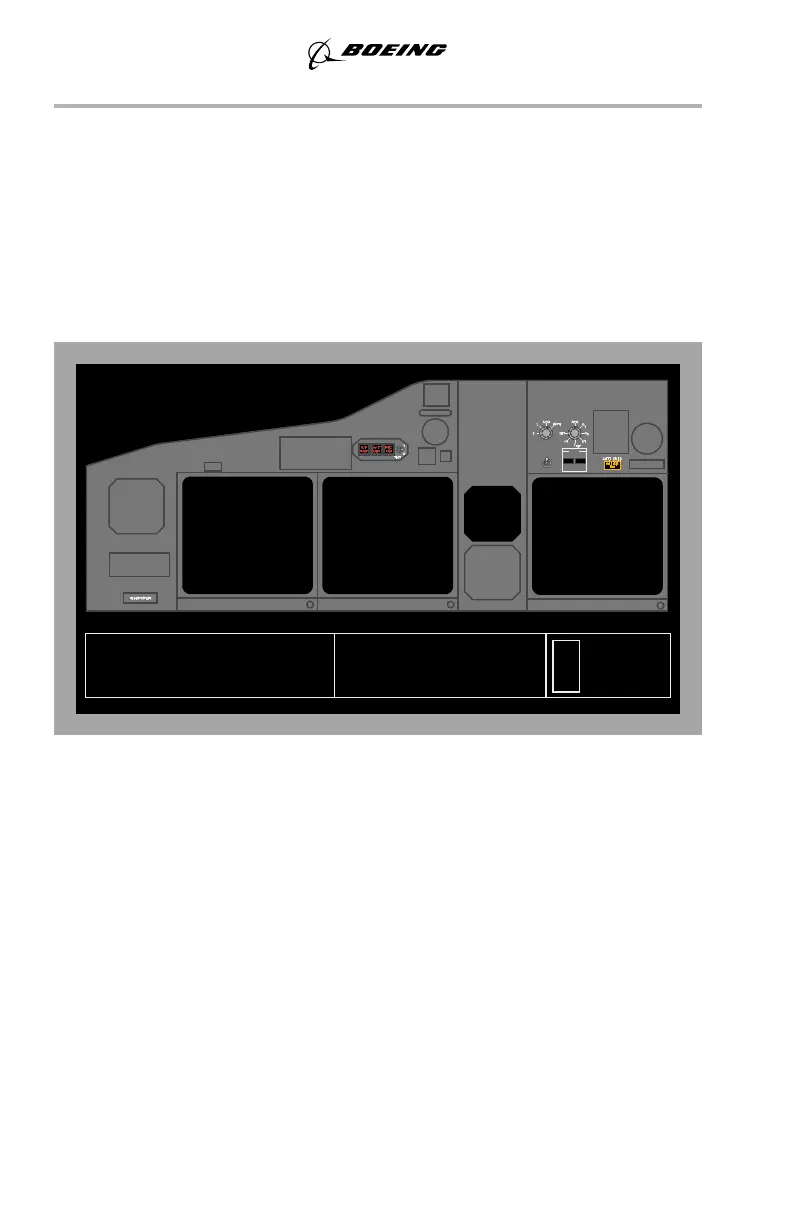

Basic Equipment Operating – Captain Instrument Panel
The standby power system utilizes the battery as a source of power to supply the
below depicted flight instruments. All of the Captain’s instruments that are
powered by standby power are integrally lighted on standby power
INSTRUMENTS
INOPERATIVE
INDICATES
STANDBY BUSSES POWERED.
WITH ONLY THE BATTERY AND
THIS ILLUSTRATION SHOWS THE
STANDBY POWER SWITCH - AUTO
BATTERY SWITCH - ON
AIRPLANE CONFIGURATION - IN FLIGHT
INSTRUMENTS WHICH ARE USABLE
MFD
FUEL FLOW
RESET
RATE
USED
N1 SET
SPD REF
INOP
INOP
CLOCK
ISFD
STBY
COMPACT
DISPLAY
ENGINE
PRIMARY
FLIGHT
DISPLAY
NAVIGATION
DISPLAY
RMI
September 23, 2010
