737 Flight Crew Operations Manual
Engines, APU -
General Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
7.15.2 D6-27370-866-EGP
2 Ignition Select Switch
IGN L – selects the left igniter for use on both engines.
BOTH – selects both igniters for use on both engines.
IGN R – selects the right igniter for use on both engines.

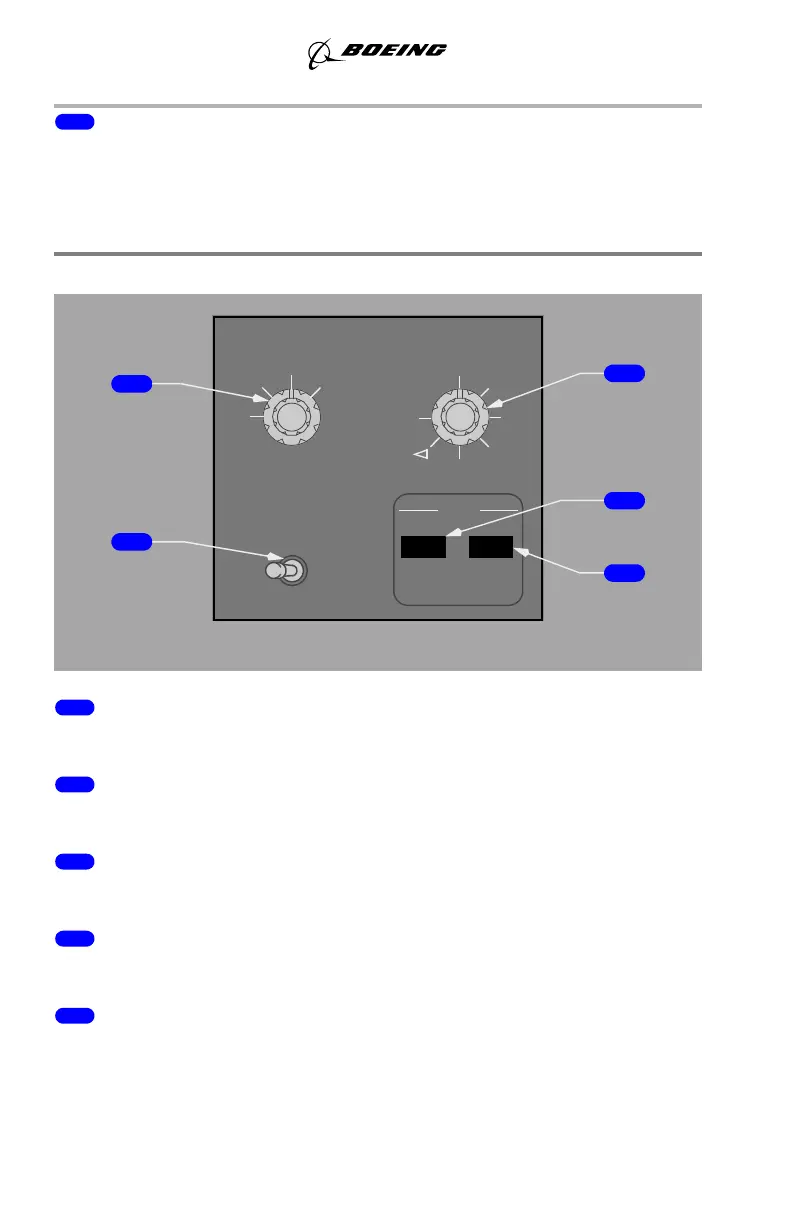

Engine Display Control Panel
1 N1 SET Knob
Refer to section 11, Over/Under - Displays
2 FUEL FLOW Switch
Refer to section 11, Over/Under - Displays
3 Speed Reference Selector
Refer to Chapter 10, Flight Instruments, Displays.
4 MFD Engine (ENG) Switch
Refer to section 20, Engines, APU - Engine System Description
5 MFD System (SYS) Switch
Refer to:
• Chapter 13, Hydraulics
• Chapter 9, Flight Controls
USED
RATE
FUEL FLOW
RESET
MFD
SPD REF
AUTO
V
V
1
WT
V
REF
SET
N1 SET
AUTO
BOTH
1
2
R
ENG SYS
CENTER FORWARD PANEL
1
2
3
4
5
