Boeing 737-800 - Traffic Alert and Collision Avoidance Indications; GPWS Annunciations

737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.11.18 D6-27370-866-EGP

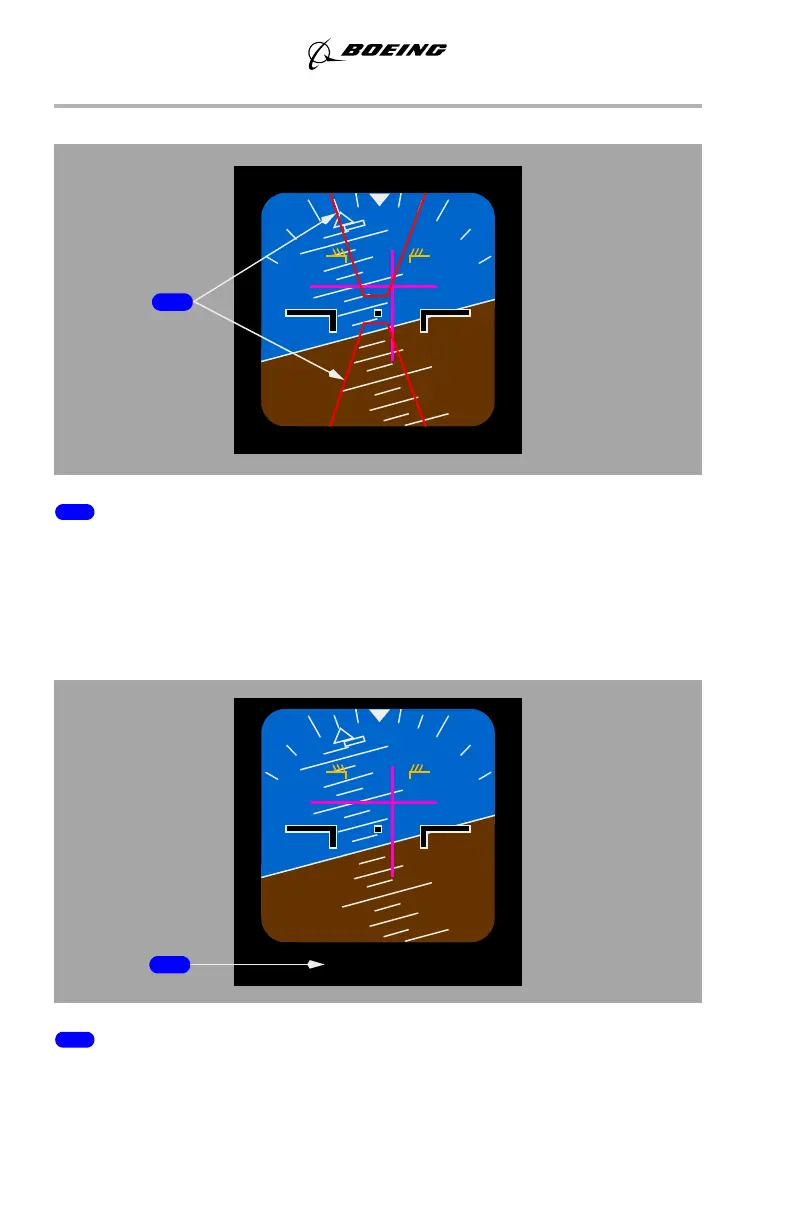

Traffic Alert and Collision Avoidance Indications
1 Traffic Alert and Collision Avoidance System Pitch Command (red)
The area(s) inside the red lines indicate(s) the pitch region(s) to avoid in order to
resolve the traffic conflict. The airplane symbol must be outside the TCAS pitch
command area(s) to ensure traffic avoidance. Refer to Chapter 15, Warning
Systems.
GPWS Annunciations
1 GPWS Annunciations (red)
Displays WINDSHEAR or Pull UP alert.
Refer to Chapter 15, Warning Systems.
1
0
1
0
1
0
1
0
2
0
2
0
2
0
1
PULL UP
1
0
1
0
1
0
1
0
2
0
2
0
2
0
1
September 15, 2016
