Vertical Situation Display (VSD)
The VSD represents a profile view of the airplane and its environment along the
current track. Information shown within the cyan dashed lines (enroute corridor)
on the ND is shown in profile on the VSD.

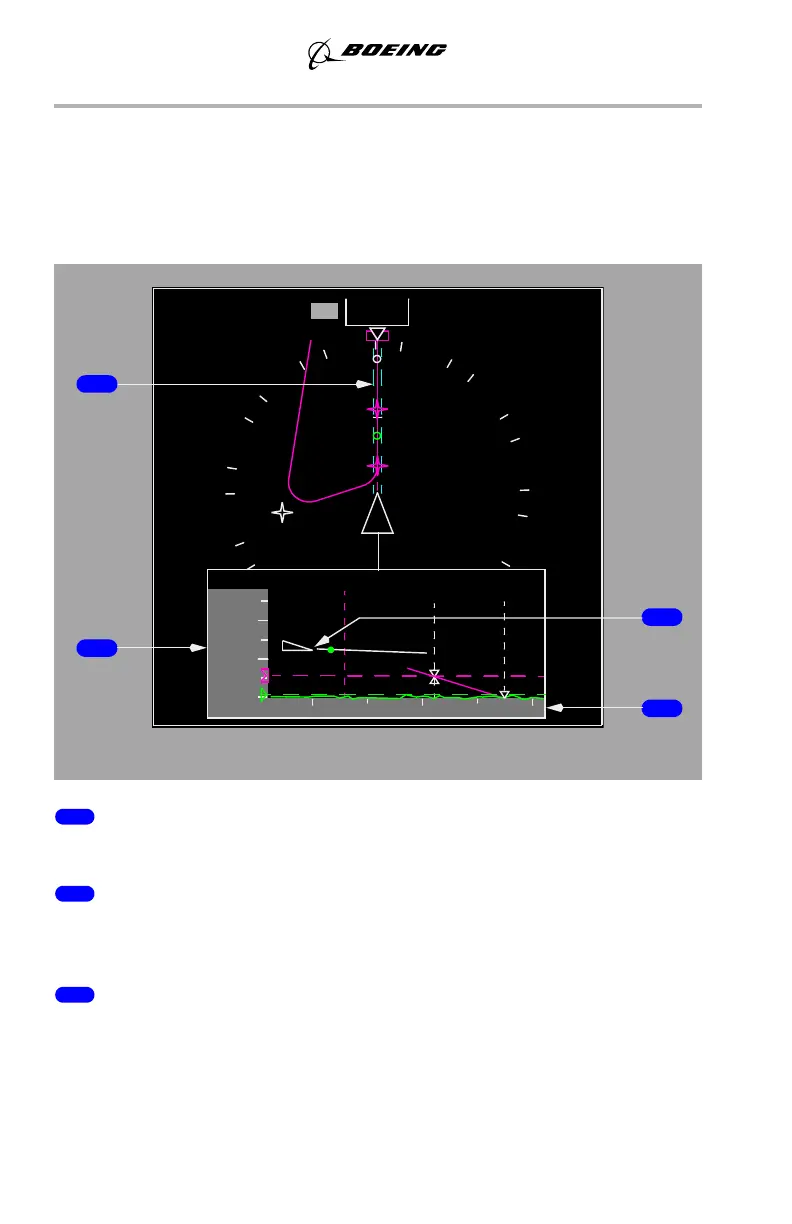

Vertical Situation Display (VSD) - Reference Scales
1 Enroute Swath
Indicates area mapped by the VSD.
2 Altitude Reference Scale
Displays altitude in reference to the vertical position of the airplane symbol,
terrain, and other objects in the VSD background display.
3 Airplane Symbol
Indicates current airplane altitude (bottom of the triangle) and lateral position
(point of the triangle) relative to terrain.
