Aileron / Elevator / Flight Spoilers

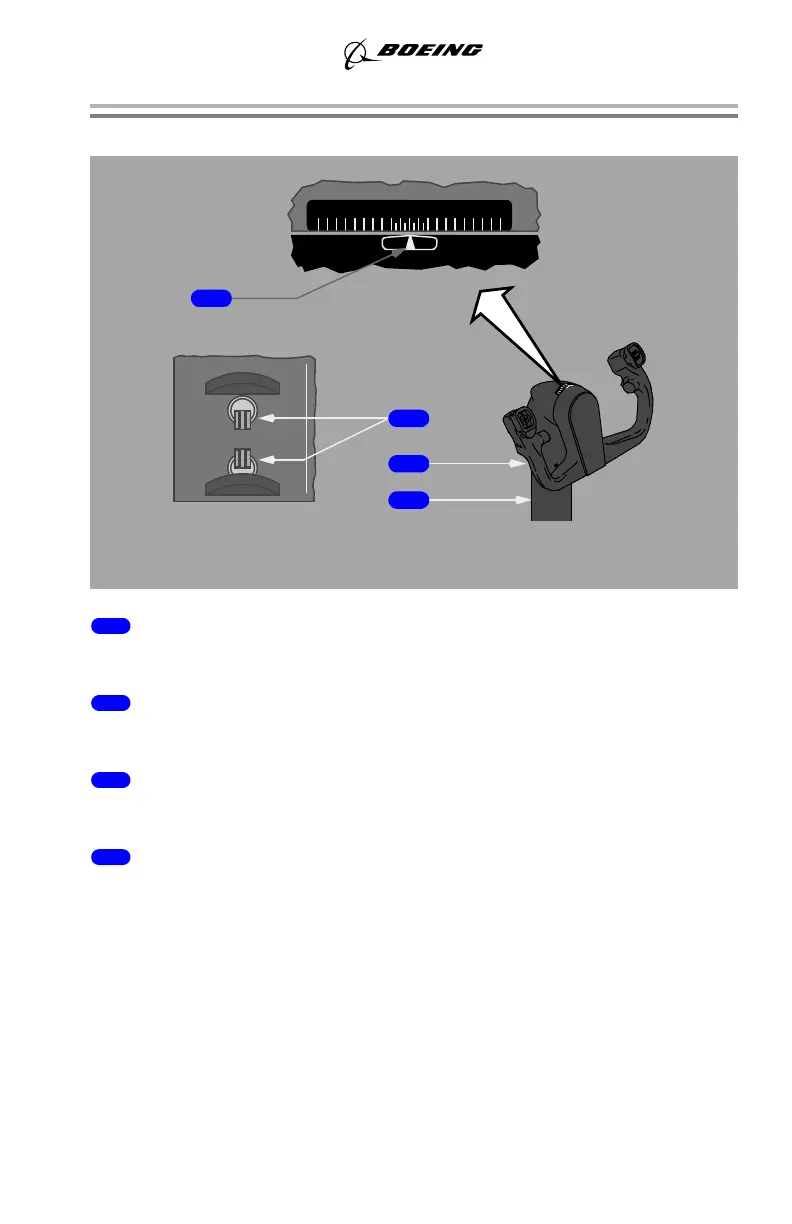

1 AILERON TRIM Indicator
Indicates units of aileron trim.
2 AILERON Trim Switches (spring-loaded to the neutral position)
Movement of both switches repositions the aileron neutral control position.
3 Control Wheel
Rotate – operates ailerons and flight spoilers in desired direction.
4 Control Column
Push/Pull –
• operates elevators in the desired direction
• movement opposing stabilizer trim stops electric trimming.
AILERON TRIM
0246810 2 4 6 108
AILERON
LEFT
WING
DOWN
RIGHT
WING
DOWN
AFT ELECTRONIC
PANEL
1
2
3
4
