Compact Engine Displays

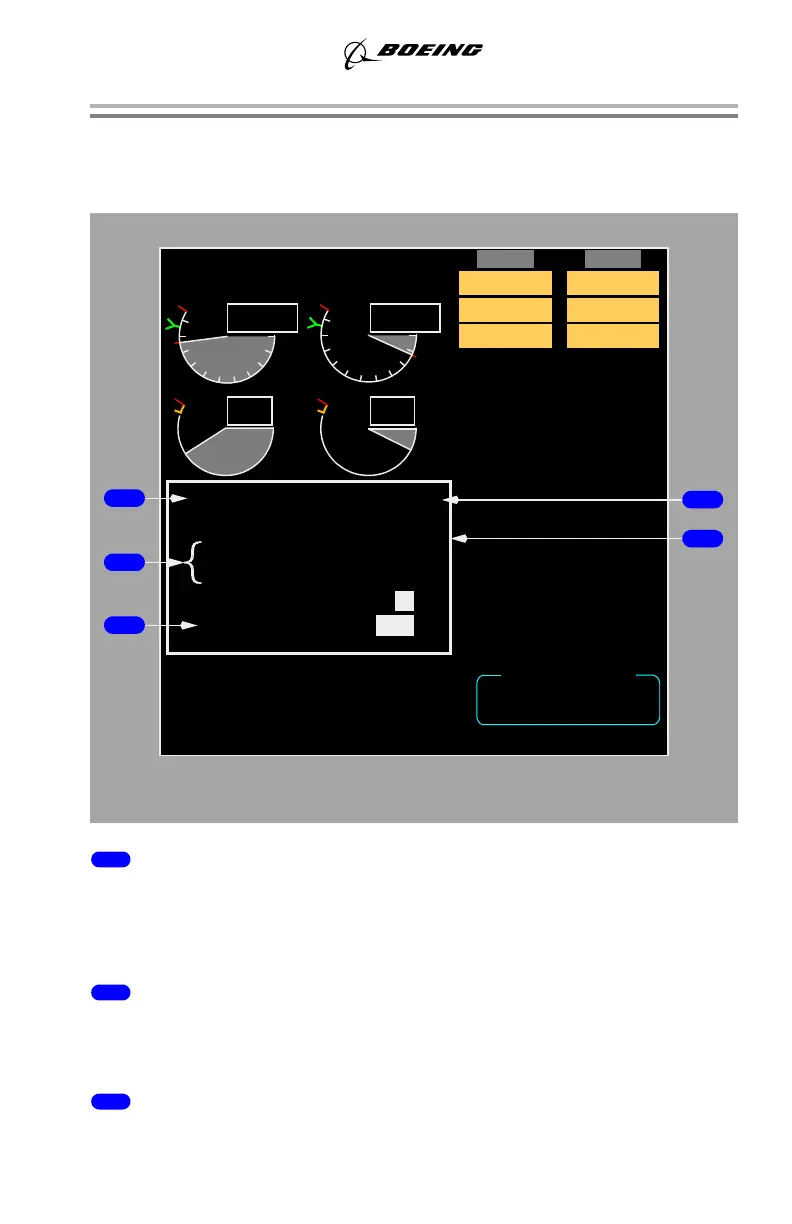

The following changes occur to the secondary engine display in the compact
engine displays.
1 N2 RPM Indications
N2 changes from round dial display to a digital display.
The digital display is framed by a red box after engine shutdown on the ground if
an inflight exceedance occurred.
2 OIL PRESS, OIL TEMP Indications
Displayed as digital readouts only
The digital readouts display amber or red if limits are exceeded.
3 Vibration (VIB) Indications
Displayed as digital readout only.
