Boeing 737-800 - Passenger Entry;Galley Service Doors; Oxygen; Oxygen Panel

737 Flight Crew Operations Manual
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 1.30.17

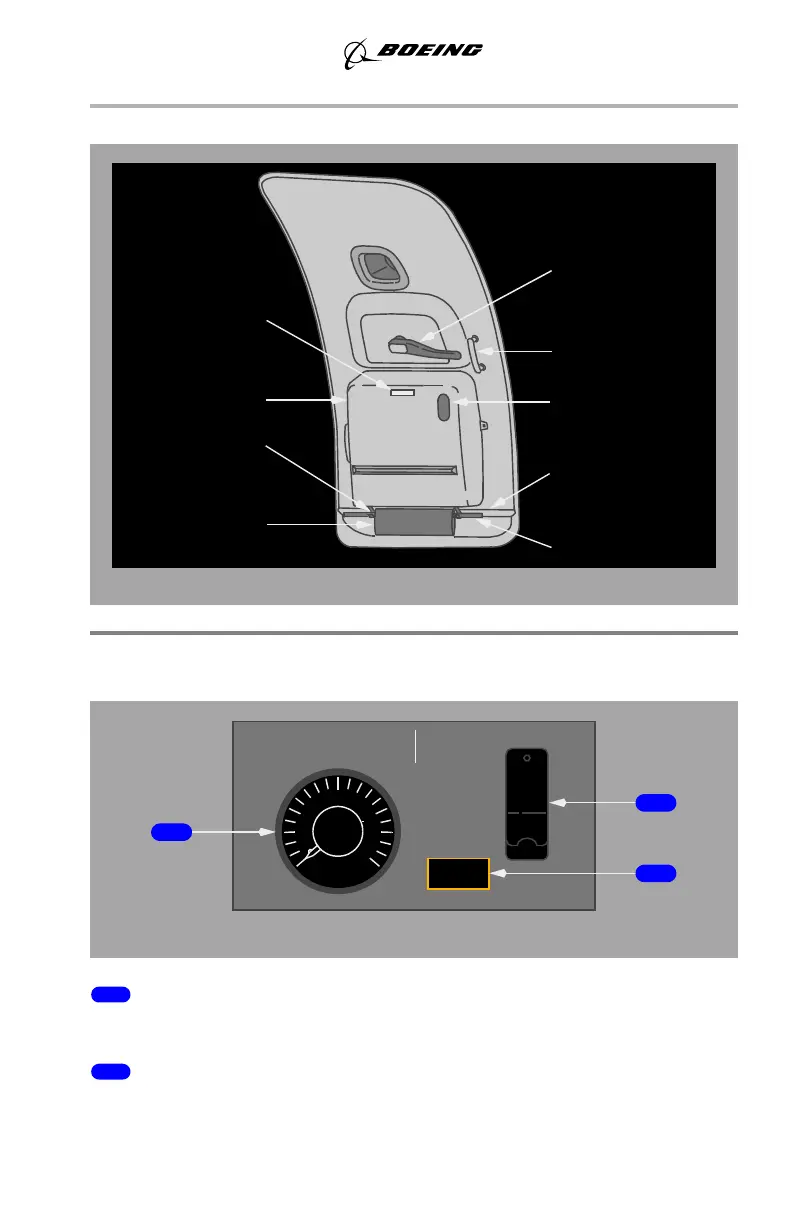

Passenger Entry/Galley Service Doors
Oxygen
Oxygen Panel
1 Flight CREW OXYGEN Pressure Indicator
Indicates pressure at the crew oxygen cylinder.
2 Passenger Oxygen (PASS OXYGEN) Switch
NORMAL – (guarded position) passenger masks drop and passenger oxygen
system activated automatically if cabin altitude climbs to 14,000 feet
GIRT
INSTRUCTION
CONTROL HANDLE
SLIDE PRESSURE
SLIDE
STOWAGE HOOKS
GIRT BAR
PLACARD
COMPARTMENT
GAUGE VIEWER
ASSIST HANDLE
FLOOR BRACKETS
PASSENGER CABIN
5
10
15
20
PSI X 100
OXY PRESS
PASS OXYGENCREW
OXYGEN
NORMAL
ON
PASS OXY
ON
AFT OVERHEAD PANEL
2
3
1
September 15, 2016
