Thermal Anti–Ice Indication

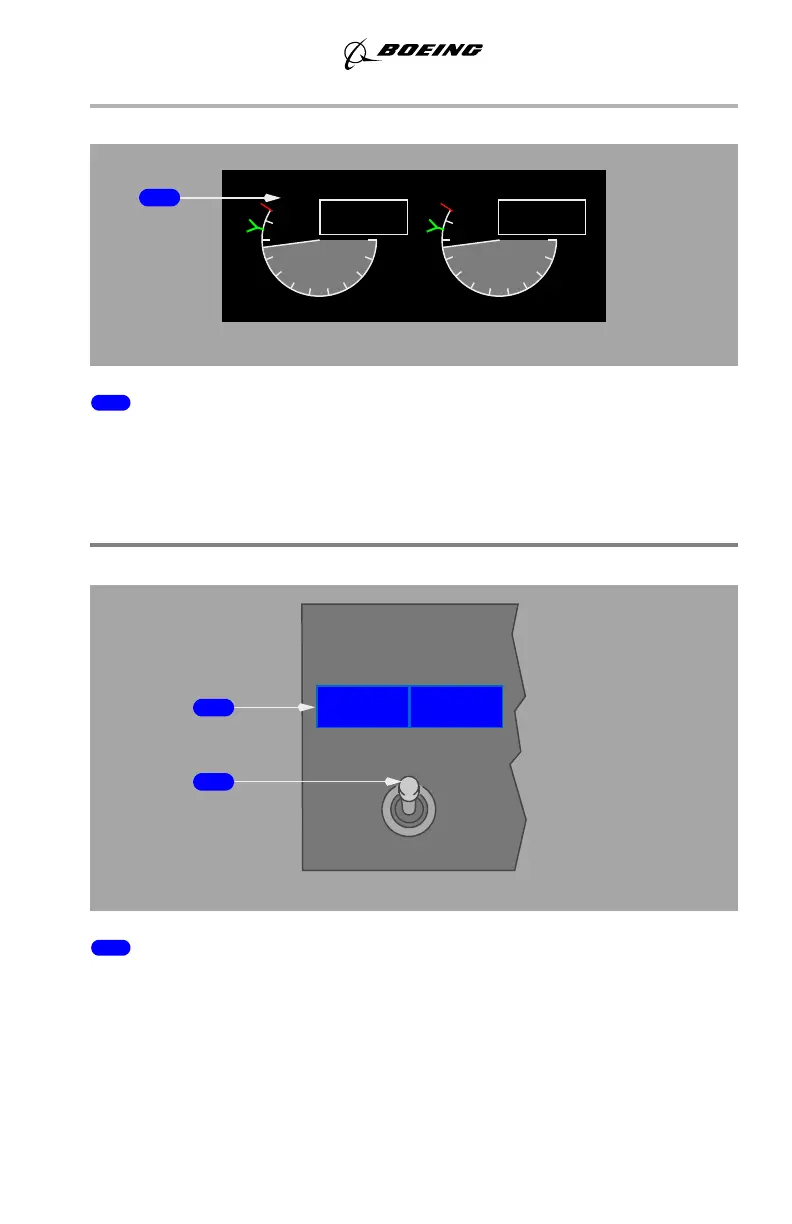

1 Thermal Anti–Ice Indications
Illuminated –
• Green – cowl anti–ice valve(s) open
• Amber – cowl anti–ice valve is not in position indicated by related
engine anti–ice switch.
Wing Anti–Ice Panel
1 Wing Anti–Ice VALVE OPEN Lights
Illuminated (blue) –
• bright – related wing anti–ice control valve is in transit, or, related wing
anti–ice control valve position disagrees with WING ANTI–ICE switch
position
• dim – related wing anti–ice control valve is open (switch ON).
Extinguished – related wing anti–ice control valve is closed (switch OFF).
