Fire Warning and Master Caution System

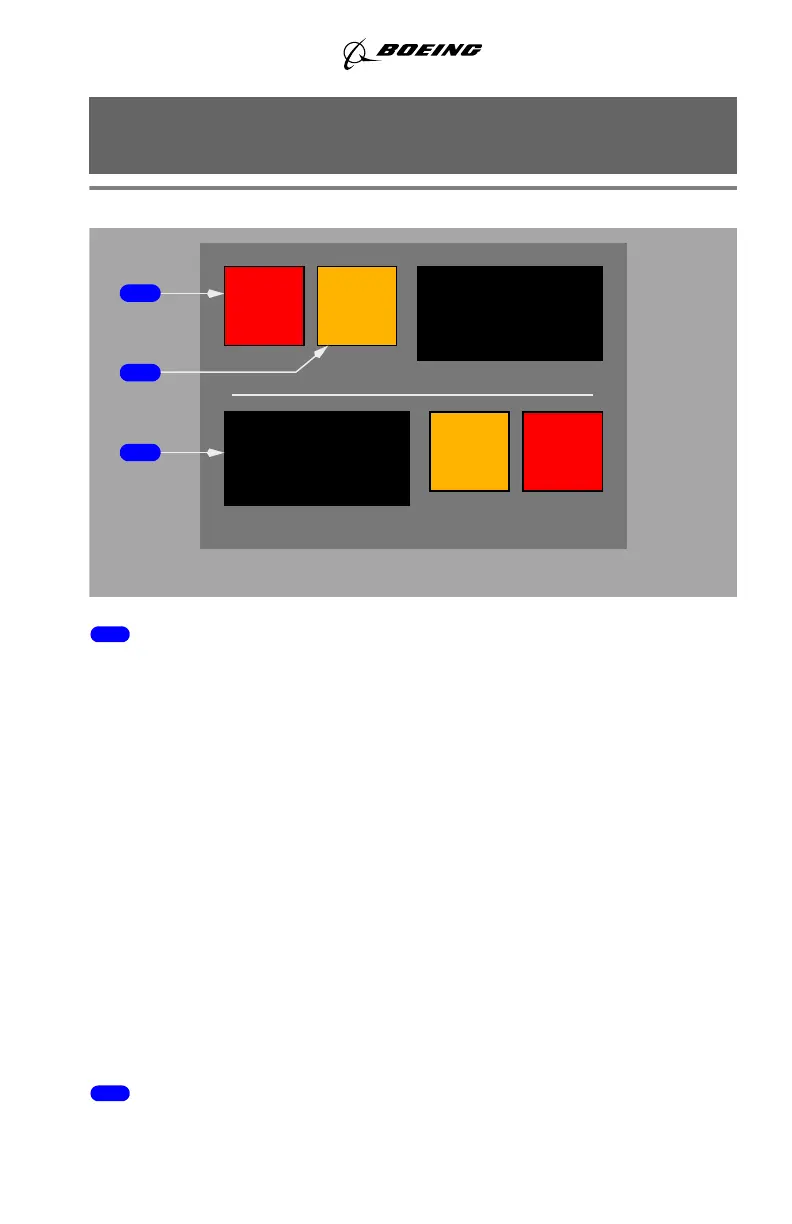

1 Master Fire Warning (FIRE WARN) Lights
Illuminated (red) – indicates a fire warning (or system test) in one or more of the
following:
• engine
•APU
• main wheel well
• cargo
Associated aural alarms include:
• fire warning bell
• if on ground, remote APU fire warning horn.
Push – extinguishes both master FIRE WARN lights
• silences fire warning bell
• silences remote APU fire warning horn
• resets system for additional warnings.
Note: Pushing fire warning bell cutout switch on overheat/fire protection panel
results in the same actions.
2 MASTER CAUTION Lights
Illuminated (amber) – a system annunciator light has illuminated.
