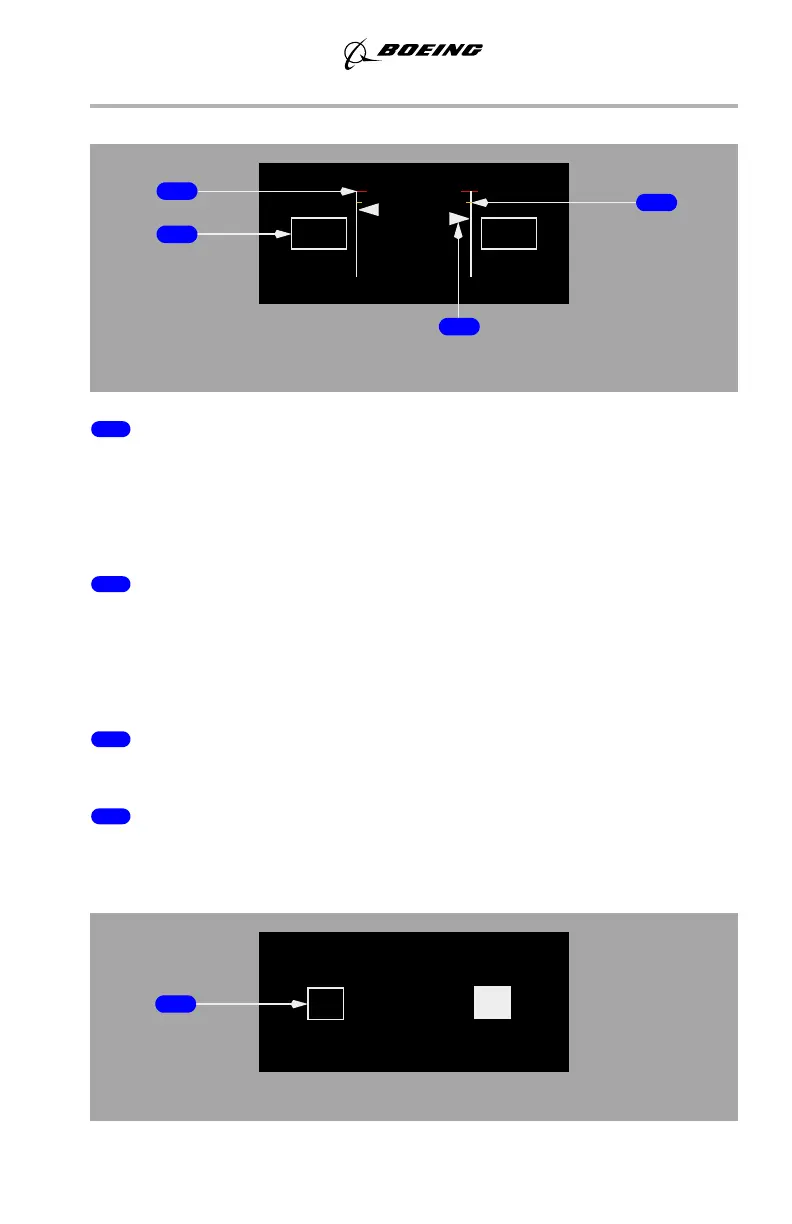

Oil Temperature Indications
1 Oil Temperature (OIL TEMP) Readout
Displays oil temperature (degrees C):
• displayed (white) – normal operating range
• displayed (amber) – caution range reached
• displayed (red) – operating limit reached.
2 Oil Temperature (OIL TEMP) Pointer
Displays oil temperature (degrees C):
• displayed (white) – normal operating range
• displayed (amber) – caution range reached
• displayed (red) – operating limit reached.
3 High Oil Temperature (OIL TEMP) Amber Band
Displayed (amber) – oil temperature caution range.
4 High Oil Temperature (OIL TEMP) Redline
Displayed (red) – oil temperature operating limit.
Oil Quantity Indications
120125
OIL
TEMP
LOWER DISPLAY UNIT
1
2
3
4
315
OIL QTY
LO
LOWER DISPLAY UNIT
1
