737 Flight Crew Operations Manual
Flight Instruments, Displays -
PFD/ND – Navigation Displays
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
10.41.8 D6-27370-866-EGP
Map
YK981 - YQ456
YW273, YW274

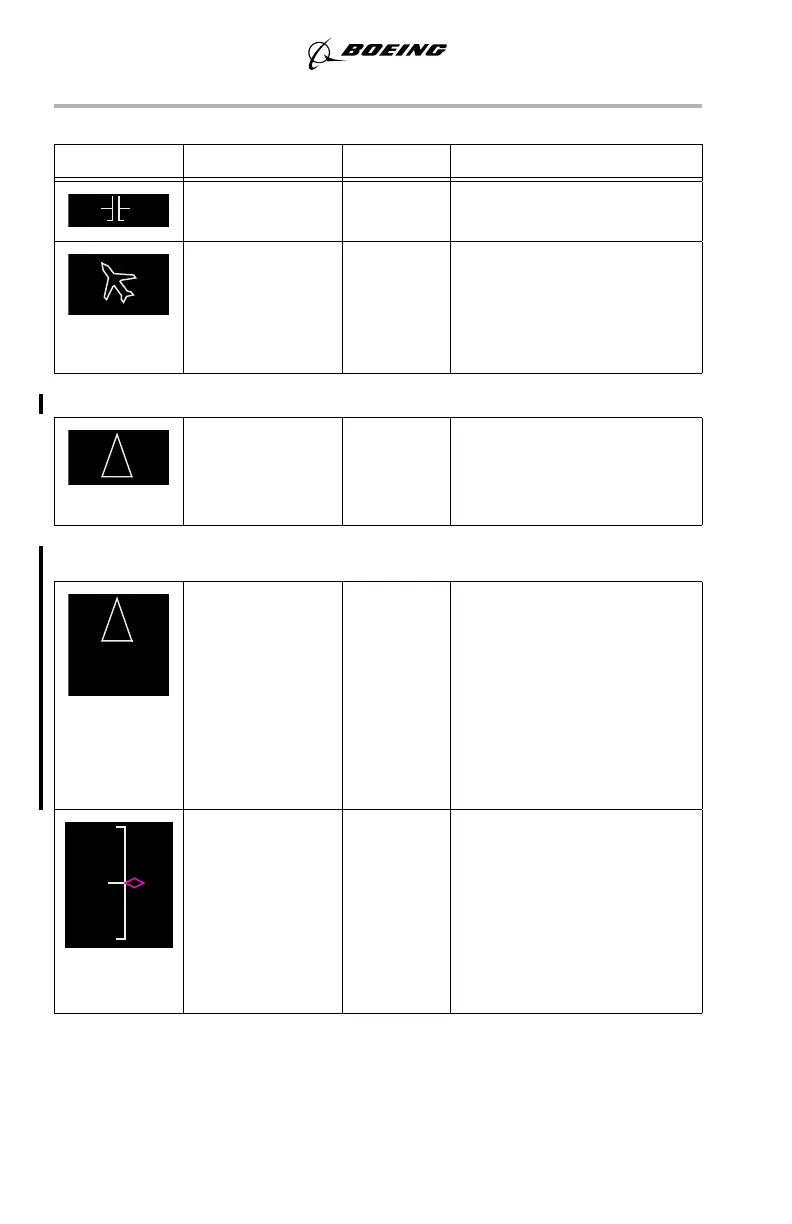

SYMBOL NAME MODE REMARKS
Airplane symbol
(W)
VOR CTR,
APP CTR
Current airplane position is at
the center of the symbol.
Airplane symbol
(W)
PLN Indicates actual position and
track along the flight plan
route. Inhibited north of 82N
latitude and south of 82S
latitude.
Airplane symbol
(W)
MAP,
MAP CTR,
VOR,
APP
Current airplane position is at
the apex of the triangle.
Airplane symbol
(W),
Lateral
ANP/RNP values
(G)
MAP,
MAP CTR,
VOR,
APP
Current airplane position is at
the apex of the triangle.
Displays lateral path
deviation distance in MAP
and MAP CTR mode only.
Whenever ANP exceeds
RNP, the ANP/RNP labels
and values are displayed in
amber.
VNAV path
pointer (M) and
deviation scale
(W)
MAP,
MAP CTR
Displays vertical deviation
from selected VNAV PATH
during descent only. Scale
indicates ± 400 feet
deviation. Digital display is
provided when the pointer
deviates more than ± 30 feet
from center.
September 15, 2016
