Boeing 737-800 - 10 Controls and Indicators; Landing Gear Panel

737 Flight Crew Operations Manual
Landing Gear Chapter 14
Controls and Indicators Section 10
Boeing Proprietary. Copyright © Boeing. May be subject to export restrictions under EAR. See title page for details.
D6-27370-866-EGP 14.10.1
10 Controls and IndicatorsControls and IndicatorsFile Highlight

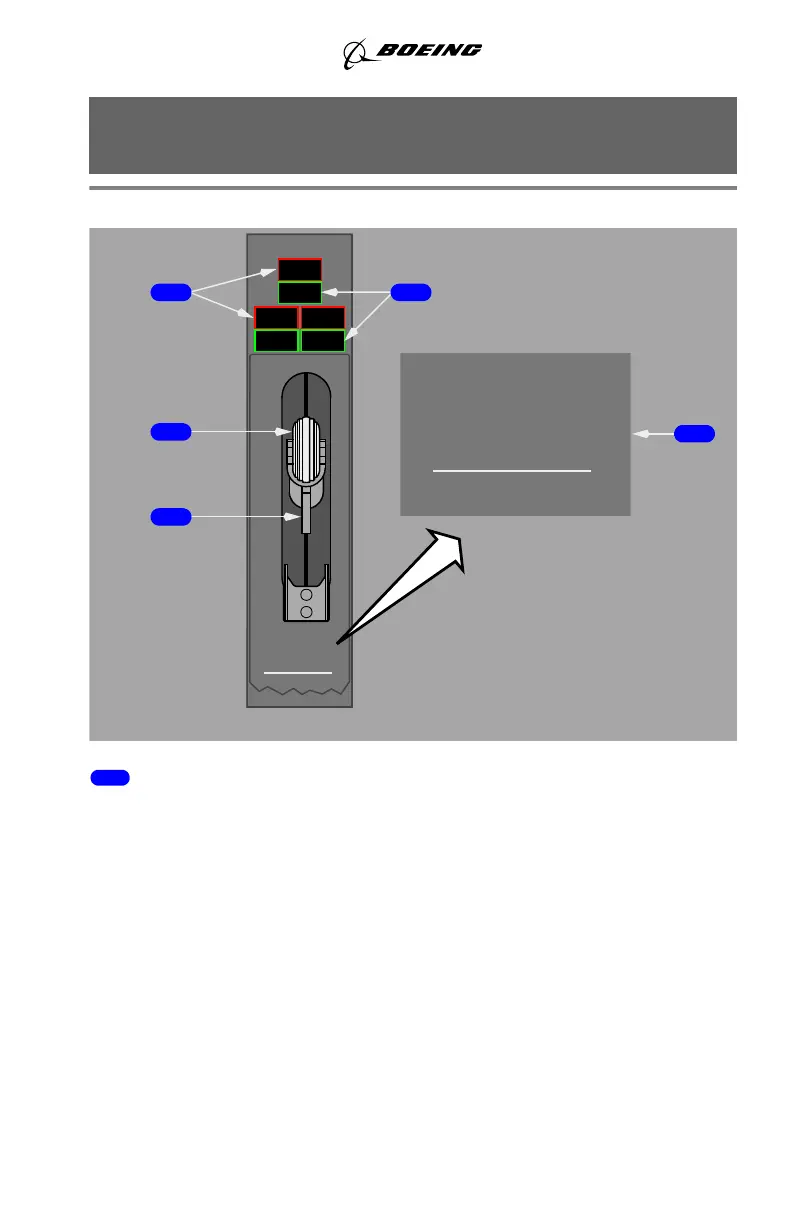

Landing Gear Panel
1 Landing Gear Indicator Lights (top)
Illuminated (red) –
• landing gear is not down and locked (with either or both forward thrust
levers retarded to idle, and below 800 feet AGL).
• related landing gear is in disagreement with LANDING GEAR lever
position (in transit or unsafe).
Extinguished -
• landing gear is up and locked with landing gear lever UP or OFF
• landing gear is down and locked with landing gear lever DN.
LANDING GEAR
OPERATING
EXTEND 270-.82M
EXTENDED 320K-.82M
RETRACT 235K
FLAPS LIMIT (IAS)
LIMIT (IAS)
RIGHT
GEAR
RIGHT
GEAR
LEFT
GEAR
LEFT
GEAR
NOSE
GEAR
LANDING GEAR
OPERATING
EXTEND 270-.82M
EXTENDED 320K-.82M
RETRACT 235K
FLAPS LIMIT (IAS)
LIMIT (IAS)
NOSE
GEAR
L
A
N
D
I
N
G
G
E
A
R
UP
DN
OFF
CENTER FORWARD PANEL
1 2
3
4
5
September 28, 2006
